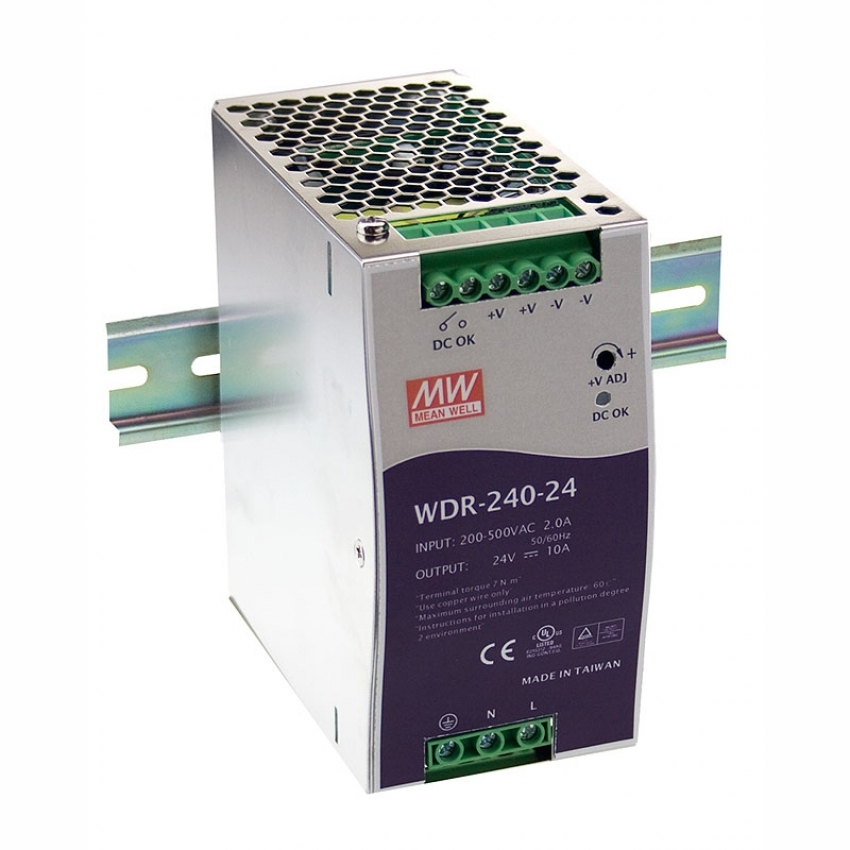

The Mean Well WDR-240-24 is a slim line 240W 24VDC Din Rail power supply. The entire WDR series allows for a very wide input voltage of 185~550VAC. The design of the WDR-240-24 body has been kept as small as possible to allow for maximum space inside of the cabinets it is being installed into. With working efficiency up to 91%, the entire WDR series can operate at the ambient temperature of -25⁰ and 70⁰ under air convection.
Din Rail, Mean Well, Power Supplies
WDR-240-24 | MEAN WELL DIN RAIL 240W 24VDC 10.0A
SKU: WDR-240-24
Availability:
4 in stock (can be backordered)
Slim & Wide Input Voltage Range
Contact us or Register for Trade, Wholesale/ Reseller Pricing.
4 in stock (can be backordered)
| Quantity | Price Per Unit |
|---|---|
| 1+ | $244.64 Incl GST $222.40 Excl GST |
| 10+ | $236.72 Incl GST $215.20 Excl GST |
| Output Type: | Constant Voltage |
| Output Channels: | Single |
| Output Voltage: | 24 VDC |
| Output Current: | 10.0 A |
| Output Wattage: | 240 W |
| Input Voltage: | 180 ∼ 550 VAC |
| Connection In: | Screw DIN Terminals |
| Connection Out: | Screw DIN Terminals |
| Case Type: | Metal Enclosed |
| Dimensions: | 63 x 126 x 114 mm |
| IP Rating: | None |
| Warranty: | 3 Years |
| Additional Features | |
| DC OK Indicator: | Yes |
| Voltage Adjustment: | 24 ∼ 28V |
| Current Adjustment: | None |
| Cooling Fan: | No |
