The Mean Well LRS-200-24 is a 200W 24VDC single output enclosed type power supply with a very low profile design. The LRS-200-24 adopts the full input range of 85~264VAC. In addition to the high efficiency of up to 91%, the design of the metallic mesh case enhances the heat dissipation of the LRS-200-24 so the unit can operate from -30⁰ through to 70⁰ under air convection without a fan.
Mean Well, Metal Cage Style, Power Supplies

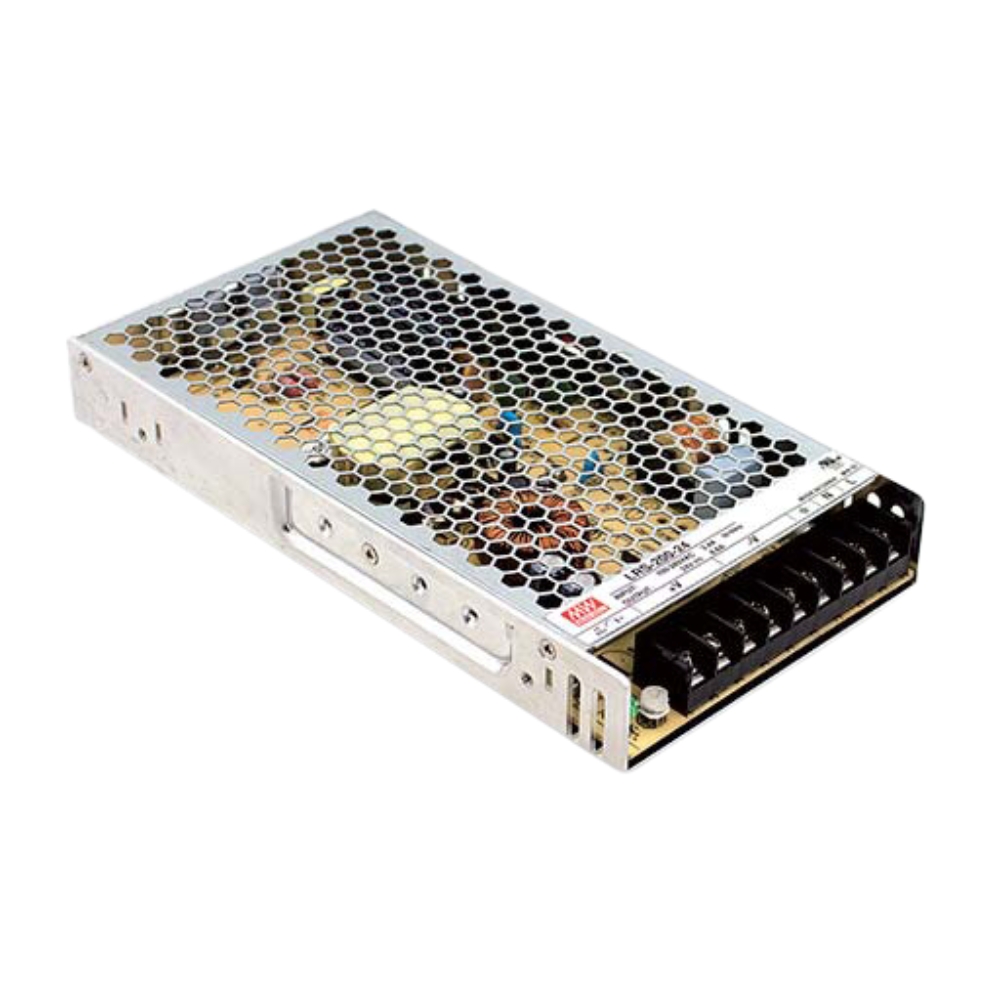

LRS-200-24 | SMPS CAGE 200W 24VDC 8.8A
SKU: LRS-200-24
Availability:
Available on backorder
Contact us or Register for Trade, Wholesale/ Reseller Pricing.
Available on backorder
| Quantity | Price Per Unit |
|---|---|
| 1+ | $52.03 Incl GST $47.30 Excl GST |
| 10+ | $50.38 Incl GST $45.80 Excl GST |
| Specifications | |
| Output Type: | Constant Voltage |
| Output Voltage: | 24 VDC |
| Output Current: | 8.8 A |
| Output Wattage: | 211.2 W |
| Input Voltage: | 85-264 VAC |
| Connection In: | Screw Terminal |
| Connection Out: | Screw Terminal |
| Case Type: | Cage |
| Dimensions: | 215 x 115 x 30 mm |
| IP Rating: | None |
| Warranty: | 3 Years |
| Additional Features | |
| Dimmable: | No |
| Voltage Adjustment: | 21.6-28.8 VDC |
| Current Adjustment: | None |
| Cooling Fan: | No |
