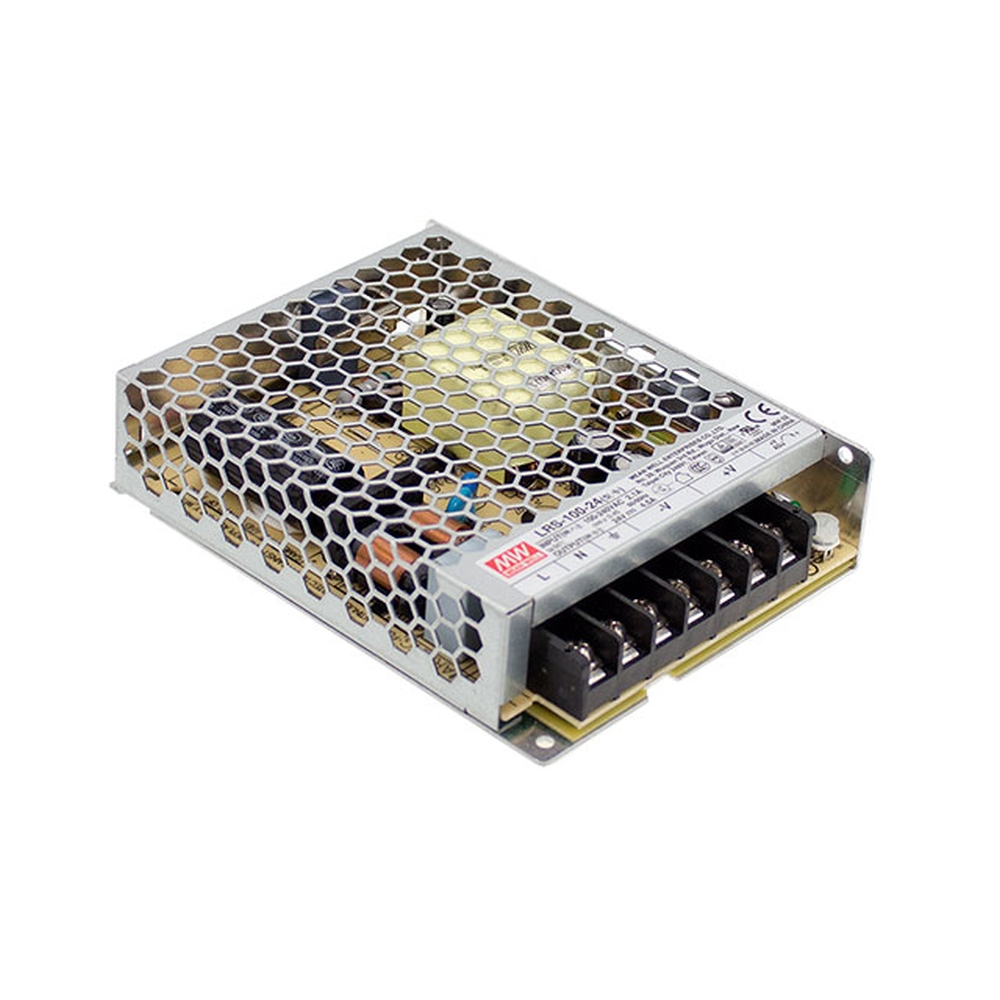

The Mean Well LRS-100-12 is a 102W 12VDC single output enclosed type power supply with a very low profile design. The LRS-100-12 adopts the full input range of 85~264VAC. In addition to the high efficiency of up to 91%, the design of the metallic mesh case enhances the heat dissipation of the LRS-100-12 so the unit can operate from -30⁰ through to 70⁰ under air convection without a fan.
Mean Well, Metal Cage Style, Power Supplies
LRS-100-12 | SMPS CAGE 102W 12VDC 8.5A
SKU: LRS-100-12
Availability:
1 in stock (can be backordered)
Contact us or Register for Trade, Wholesale/ Reseller Pricing.
1 in stock (can be backordered)
| Quantity | Price Per Unit |
|---|---|
| 1+ | $33.55 Incl GST $30.50 Excl GST |
| 10+ | $32.45 Incl GST $29.50 Excl GST |
| Specifications | |
| Output Type: | Constant Voltage |
| Output Voltage: | 12 VDC |
| Output Current: | 8.5A |
| Output Wattage: | 102 W |
| Input Voltage: | 85-264 VAC |
| Connection In: | Screw Terminal |
| Connection Out: | Screw Terminal |
| Case Type: | Cage |
| Dimensions: | 129 x 97 x 30 mm |
| IP Rating: | None |
| Warranty: | 3 Years |
| Additional Features | |
| Dimmable: | No |
| Voltage Adjustment: | 10.2-13.8 VDC |
| Current Adjustment: | None |
| Cooling Fan: | No |
