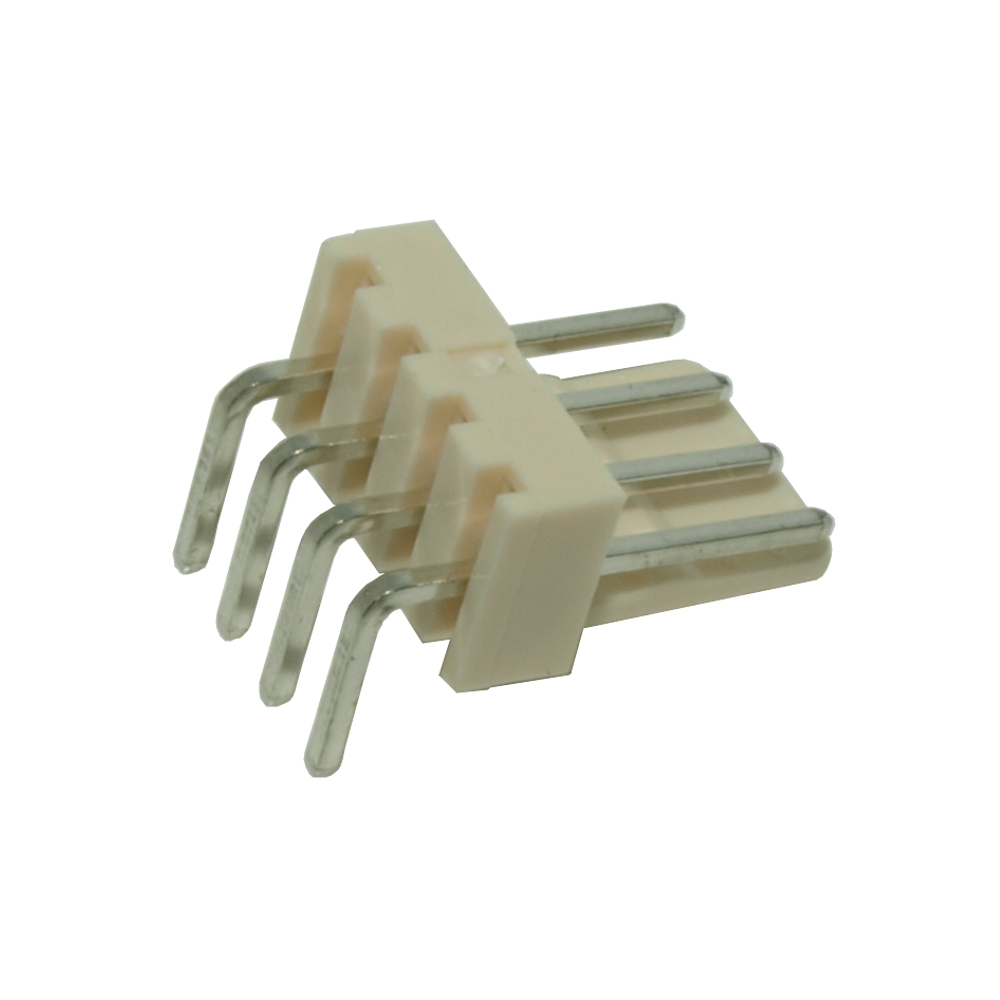

JS-7001-04 | LOCKING HEADER RIGHT ANGLE 2.54MM 4-WAY
JS-7001-04 | LOCKING HEADER RIGHT ANGLE 2.54MM 4-WAY - Image 2
| |

JS-7001-04 | LOCKING HEADER RIGHT ANGLE 2.54MM 4-WAY

SKU: JS-7001-04

Availability:

5828 in stock (can be backordered)

$0.10 Exc GST

Qty Price Per Unit Total Price
1+ $0.11 Incl GST $0.10 Excl GST $0.11 Incl GST $0.10 Excl GST
100 $0.05 Incl GST $0.044 Excl GST $4.84 Incl GST $4.40 Excl GST
1000 $0.04 Incl GST $0.036 Excl GST $39.60 Incl GST $36.00 Excl GST
  • JS-7001-04 | LOCKING HEADER RIGHT ANGLE 2.54MM 4-WAY

    JS-7001-04 | LOCKING HEADER RIGHT ANGLE 2.54MM 4-WAY

    SKU: JS-7001-04

    Availability: 5828 in stock

    Qty Price Per Unit Total Price
    1+ $0.11 Incl GST $0.10 Excl GST $0.11 Incl GST $0.10 Excl GST
    100 $0.05 Incl GST $0.044 Excl GST $4.84 Incl GST $4.40 Excl GST
    1000 $0.04 Incl GST $0.036 Excl GST $39.60 Incl GST $36.00 Excl GST
  • Js-8001-04

    4 Way 2.54mm Locking Crimp Housing

    SKU: JS-8001-04

    Availability: 1449 in stock

    Qty Price Per Unit Total Price
    1+ $0.44 Incl GST $0.40 Excl GST $0.44 Incl GST $0.40 Excl GST
    100 $0.11 Incl GST $0.10 Excl GST $11.00 Incl GST $10.00 Excl GST
    1000 $0.08 Incl GST $0.07 Excl GST $77.00 Incl GST $70.00 Excl GST
  • 2.54mm Crimp Pin Suits JS-8001 Series Housing

    2.54mm Crimp Pin Suits JS-8001 Series Housing

    SKU: JS-8001-PBT

    Availability: 427 in stock

    Qty Price Per Unit Total Price
    1+ $0.09 Incl GST $0.08 Excl GST $0.09 Incl GST $0.08 Excl GST
    100 $0.03 Incl GST $0.03 Excl GST $3.30 Incl GST $3.00 Excl GST
    1000 $0.02 Incl GST $0.02 Excl GST $22.00 Incl GST $20.00 Excl GST
    10000 $0.02 Incl GST $0.015 Excl GST $165.00 Incl GST $150.00 Excl GST
$0.58 Exc GST for 3 item(s)

SKU : JS-7001-04

Categories : 2.54mm Wire to Board Connectors > Chyao Shiunn > Connectors

Tags : 2.54mm, 4W, Connector, Connectors, Wafer, Wafer Connector

Poles: 4
Profile: Right Angle (90°)
Dimensions: Refer Drawing
Voltage Rating: 250V AC/DC
Current Rating: 3A AC/DC
Withstanding Voltage: 1000V AC/minute
Insulation Resistance: 1000MΩ min
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ max
Material: Nylon 66 / Brass

JS-7001 Drawing
