SKU: JS-8001-PBT
10727 in stock (can be backordered)
$0.08 Exc GST
| Qty | Price Per Unit | Total Price |
| 1+ | $0.09 Incl GST $0.08 Excl GST | $0.09 Incl GST $0.08 Excl GST |
| 100 | $0.03 Incl GST $0.03 Excl GST | $3.30 Incl GST $3.00 Excl GST |
| 1000 | $0.02 Incl GST $0.02 Excl GST | $22.00 Incl GST $20.00 Excl GST |
| 10000 | $0.02 Incl GST $0.015 Excl GST | $165.00 Incl GST $150.00 Excl GST |

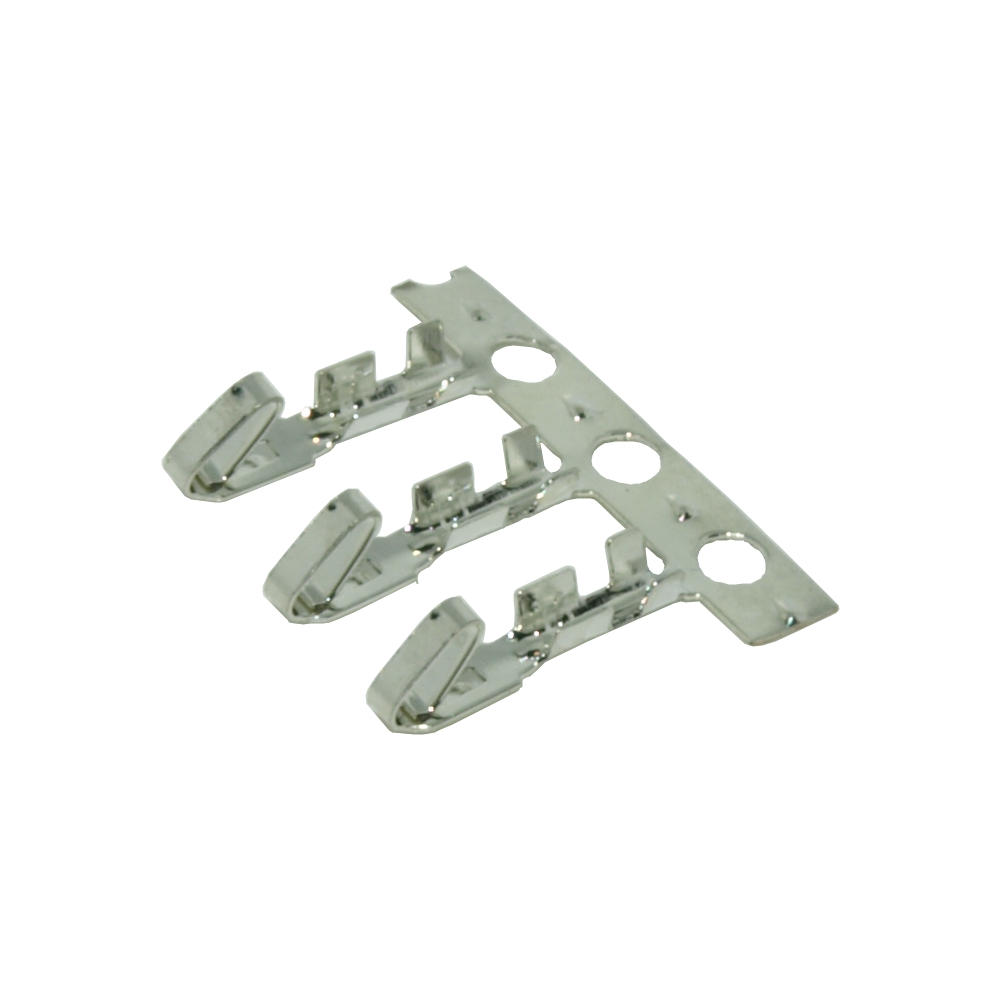

2.54mm Crimp Pin Suits JS-8001 Series Housing
SKU : JS-8001-PBT
Categories : 2.54mm Wire to Board Connectors > Chyao Shiunn > Connectors
| Current Rating: | 3A AC/DC |
| Withstanding Voltage: | 1000V AC/minute |
| Insulation Resistance: | 1000MΩ min |
| Temperature Range: | -25℃ to +85℃ |
| Contact Resistance: | 20mΩ max |
| Material: | Brass / Tin Plated |
| Wire Size: | AWG# 22-28 |

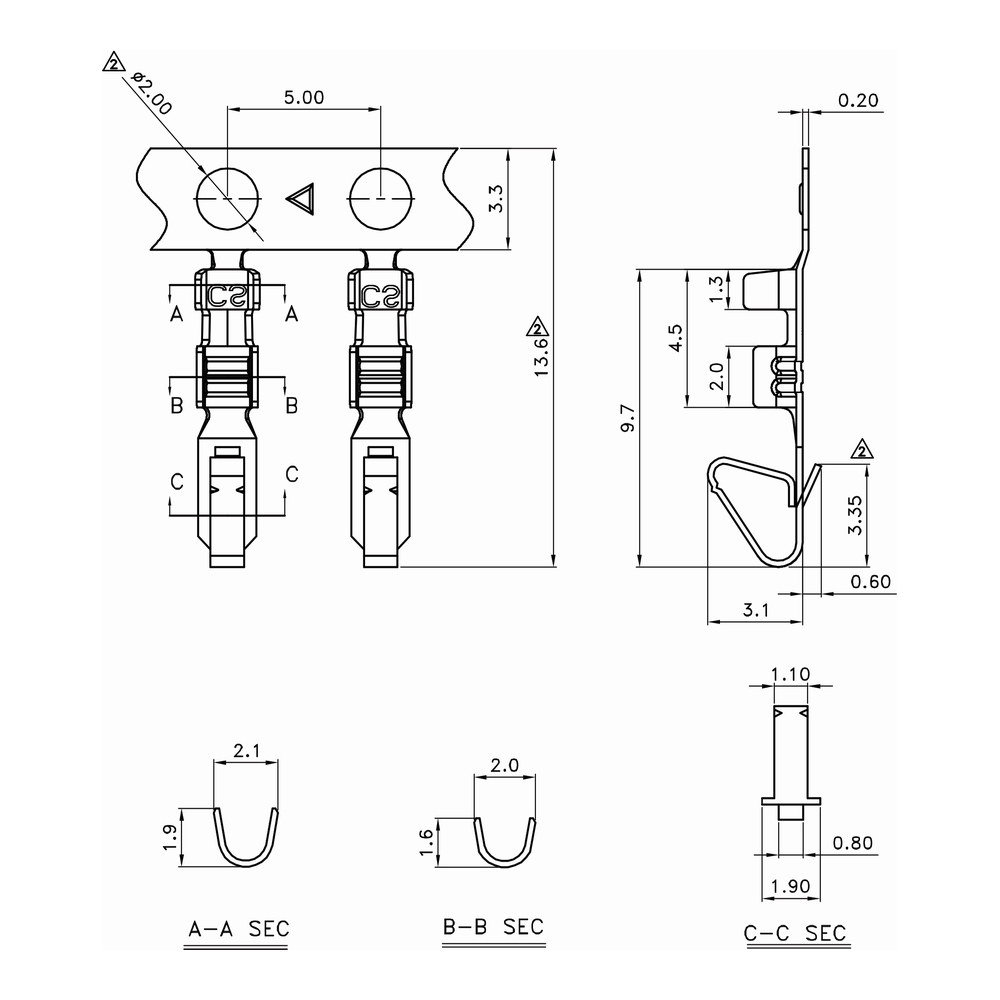

| Dimensions: | Refer Drawing |
