Plug Pack 12V DC 3A Power Supply Adaptor
Plug Pack 12V DC 3A Power Supply Adaptor - Image 2
| |

Plug Pack 12V DC 3A Power Supply Adaptor

SKU: PSPPSW3.012

Availability:

5 in stock (can be backordered)

$29.50 Exc GST

Qty Price Per Unit Total Price
1+ $32.45 Incl GST $29.50 Excl GST $32.45 Incl GST $29.50 Excl GST

Plug Pack 12V 3A Power Supply Adaptor
Compact and efficient 12V 3A (36W) plug pack designed to power a variety of low-voltage electronic devices. This high-quality adaptor operates on a universal 100–240V AC input and delivers regulated 12V DC output, ideal for LED strips, CCTV, and home electronics.

Features:

  • Input Voltage: 100–240V AC (90–264V range)

  • Output Voltage: 12V DC @ 3A

  • Rated Power: 36W

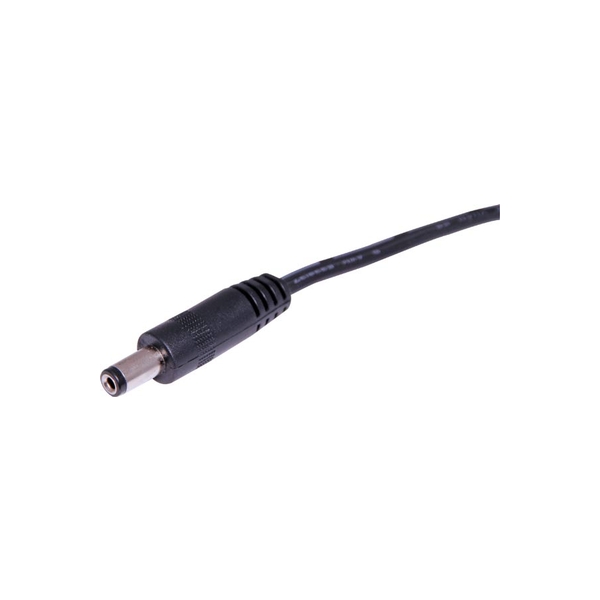

  • 5.5mm x 2.1mm DC plug (centre positive)

  • 1.8 metre output cable

  • Energy efficient: MEPS Level VI compliant

  • No-load power consumption: <0.1W

  • Compact size: 49W x 85H x 42D mm

  • Class II construction with built-in fuse

  • Max AC leakage current: 0.25mA @ 240V

  • Operating temperature: 0°C to +40°C

SKU : PSPPSW3.012

Categories : Plug Packs > Power Supplies > Powertran

Tags : Plug Pack, Power Supplies, Power Supply

Category Specification
Input Specifications
Rated Input Voltage 100-240V AC
Operating Voltage Range 90-264V AC
Rated Input Frequency 50/60Hz
Frequency Variation 50/60Hz ± 3Hz
Max Rated Input Current 0.8A
Primary Current Protection Internal fuse on the AC input line
Power Consumption (No Load) Max 0.1W at 115V and 230V
Configuration Class II Conductor
AC Leakage Current Max 0.25mA @ 240V AC input
Output Specifications
DC Output Voltage 12V DC
Minimum Load Current 0.01A
Rated Load Current 3A
Rated Output Power 36W
Line Regulation Less than ±5% at rated load with ±10% input change
Load Regulation Less than ±5% from 0% to 100% rated load
General Specifications
Operating Temperature 0°C to +40°C
Non-Operating Temperature -20°C to +80°C
Operating Humidity 10% to 90% (Non-Condensing)
Non-Operating Humidity 10% to 90% (Non-Condensing)
Barrel Connector Length 10mm
Plug Tip Dimensions 5.5mm outer diameter, 2.1mm inner diameter
Polarity Positive center
Cable Length 1.8m
MEPS Efficiency Level VI
Dimensions 49mm (W) x 85mm (H) x 42mm (D)
