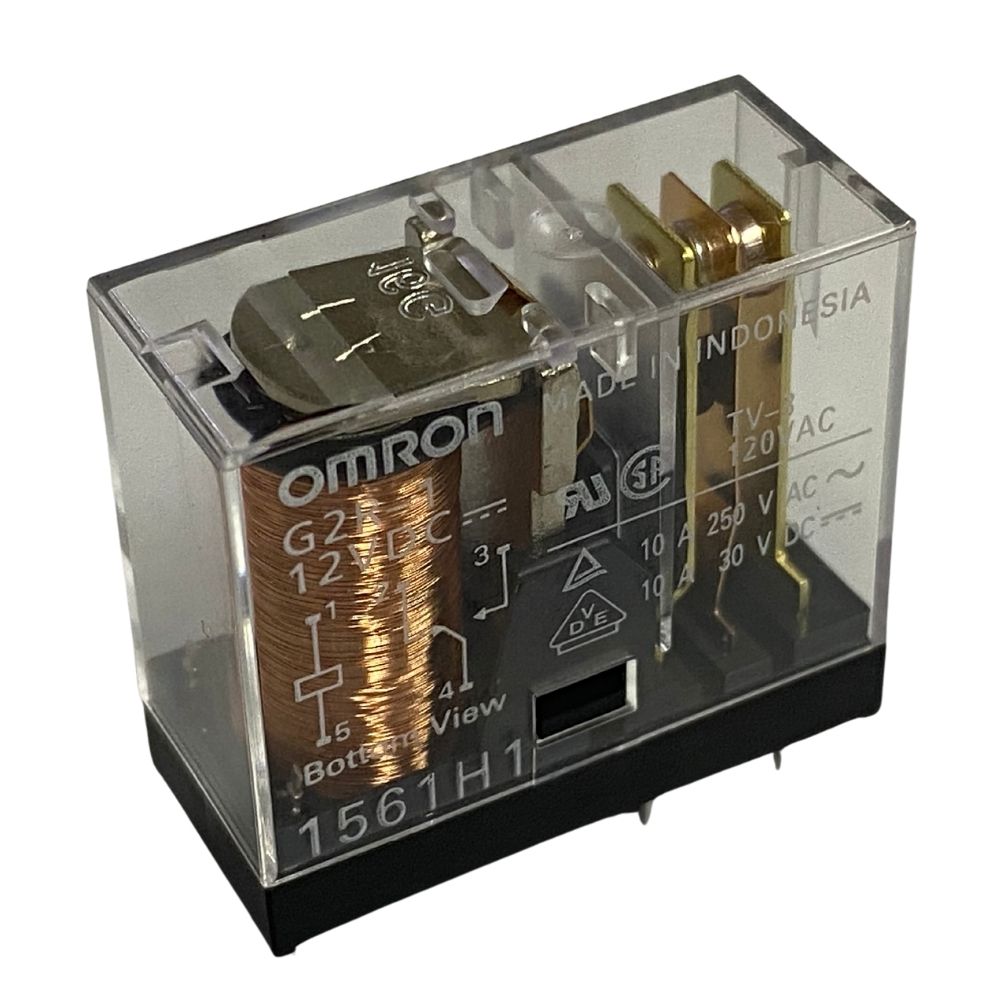

G2R-1-DC12 | Relay SPDT 10A 12VDC Coil – Omron Electronics
The Omron G2R-1-DC12 is a high-quality SPDT relay featuring a 12VDC coil and a 10A contact rating. Designed for reliable switching in both industrial and commercial applications, it offers a through-hole mounting style and a non-latching coil with a coil resistance of 275 ohms. Its SPDT (1 Form C) contact configuration supports switching voltages up to 380VAC or 125VDC.
This relay features PC pin terminations, flux protection sealing, and compact dimensions of 29mm x 13mm x 26mm. With an operating temperature range from -40°C to +70°C, fast 15ms operating time, and 5ms release time, it’s suitable for a wide range of demanding electronic circuits.
Features:
-
SPDT (1 Form C), 10A max contact rating
-
12VDC coil voltage, 43.6mA coil current
-
Through-hole mounting with PC pin termination
-
Switching capacity: 380VAC / 125VDC
-
Non-latching coil, flux-protected seal
-
Fast switching: 15ms operate, 5ms release
-
Operating temperature: -40°C to +70°C
-
Dimensions: 29L x 13W x 26H mm (max)
