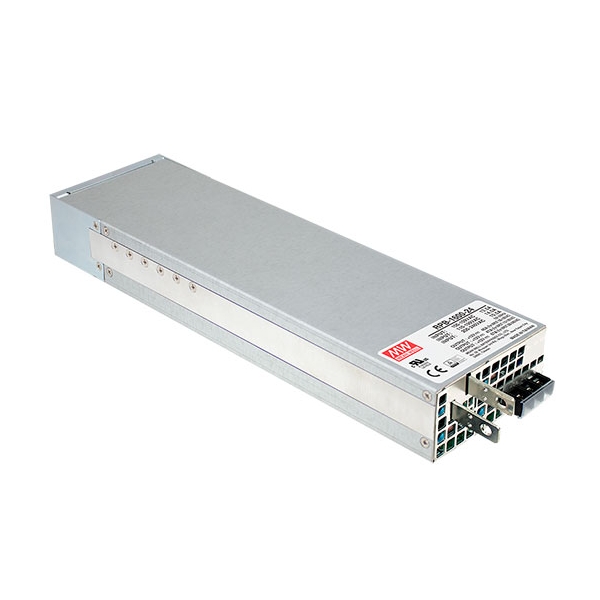

RPB-1600-12 | BATTERY CHARGER SLA 12VDC 100A 1600W

SKU: RPB-1600-12

Availability:

1 in stock


1 in stock

Quantity Price Per Unit
1+ 595.00 Excl GST

Features

  • Charger for lead-acid batteries (Gel, flooded and AGM) and Li-ion batteries (lithium iron and lithium manganese)
  • Built-in default 3 stage charging curves and programmable curve
  • Built-in I C interface, PMBus protocol 2 (Optional CANBus protocol)
  • Universal AC input / Full range (Withstand 300VAC surge input for 5 seconds)
  • Built-in active PFC function
  • Forced air cooling by built-in DC fan
  • Output voltage and current programmable
  • Built-in OR-ing FET
  • Active current sharing up to 4800W(2+1)
  • Protections: Battery under voltage / Battery no connection / Short circuit / Over voltage / Over temperature
  • 5 years warranty

Applications

  • Large scale DC UPS or emergency backup system
  • Marine battery charger module
  • Electric scooter or vehicle charger station
  • Wastewater treatment system
  • Electrolysis system

RPB-1600 is a 1.6KW single output AC/DC charger with a high power density up to 25W/inch. Three 3embedded charging curves, specifically for the lead-acid batteries, are built into each model. Thanks to the communication protocol, PMBus, and CANBus one spare curve can be further accommodated to fit other types of batteries such as the li-ion batteries. Each model is cooled by the thermostatically controlled fan. Moreover, RPB-1600 provides various protection mechanisms, offering the best safety for diversified types of applications.

Mean Well RPB-1600 Data Sheet
