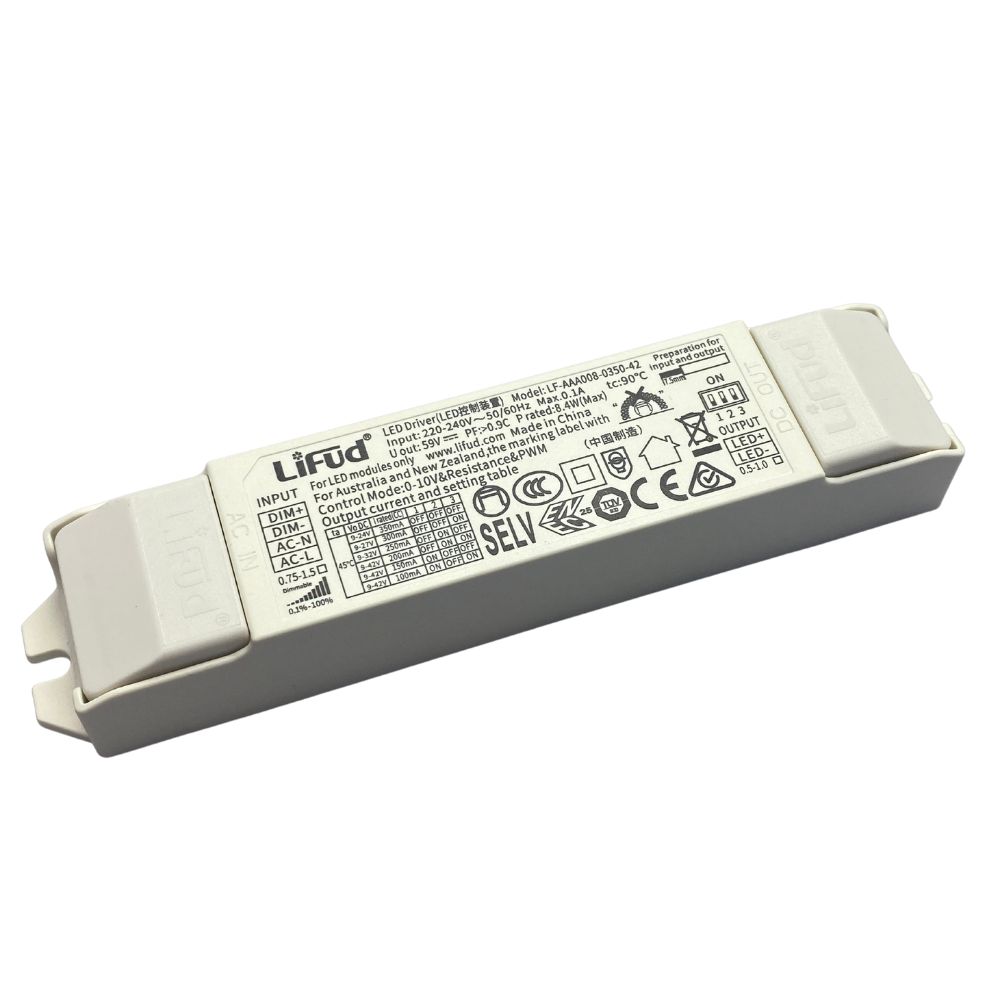

LF-AAA008-0350-42 is an 8W constant current flicker free LED driver. It has 0-10V/PWM/Rx dimming functions. The input voltage range is 220-240Vac. The output current can be adjusted via the DIP switch from 100mA to 350mA (100mA, 150mA, 200mA, 250mA, 300mA, 350mA), in steps of 50mA.
Features
- IP20
- Suitable for Class II light fixtures
- Constant current output and the output current can be adjusted via the DIP switch
- Built-in active PFC function
- Standby power consumption <0.5W
- 0-10V/PWM/Rx dimming
- 5-year warranty (Please refer to the warranty conditions)
Applications
- Indoor office lighting
- Decorative lighting
- Commercial lighting
- Residential lighting
LF-AAA008-0350-42 Data Sheet
| Output Type: |
Constant Current |
| Output Voltage: |
9-42VDC* |
| Output Current: |
100mA, 150mA, 200mA, 250mA, 300mA, 350mA |
| Output Wattage: |
8W |
| Input Voltage: |
220–240 VAC
180-280 VDC |
| Input Current: |
0.1A Max |
| Connection In: |
Push Terminals |
| Connection Out: |
Push Terminals |
| Case Type: |
Plastic Enclosed |
| Flicker Percentage: |
≤0.9% |
| Efficiency: |
≥73% |
| Power Factor: |
≥0.90 |
| Working Temp: |
– 20°C ~ +45°C |
| Dimensions: |
142 x 30 x 21 mm |
| IP Rating: |
IP20 |
| Warranty: |
5 Years (Tc ≤77.5°C) |
| Protections: |
Open Circuit: <59V |
|
Short Circuit: Constant Current Mode |
| Additional Features |
| Dimmable: |
Yes: 0-10V/ PWM/ Rx |
| Voltage Adjustment: |
No |
| Current Adjustment: |
Yes |
| Cooling Fan: |
No |
