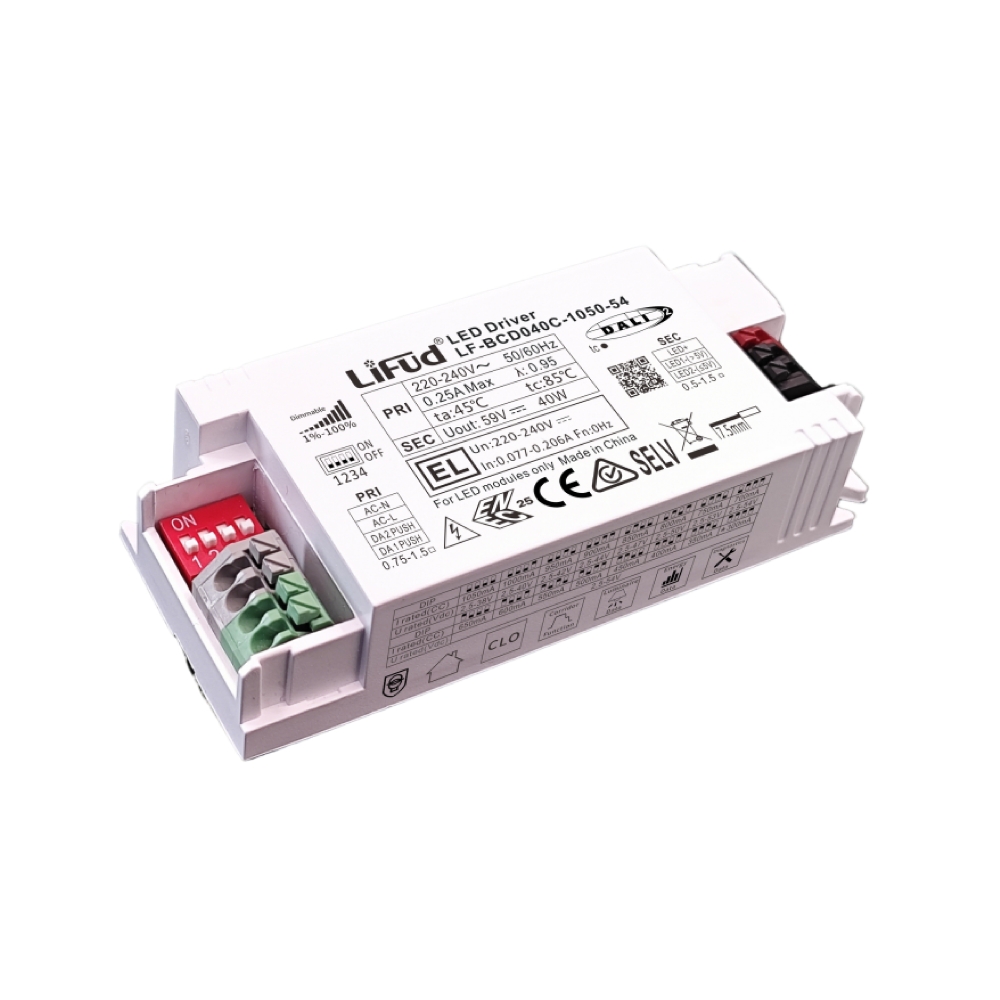

Lifud LF-BCD040C-1050-54 DALI-2 & Push Dimmable Constant Current LED Driver (16.2–40W)
The Lifud LF-BCD040C-1050-54 is a premium 40W constant current LED driver designed for professional lighting installations requiring exceptional performance, flexibility and reliability. Featuring DALI-2 and Push dimming, this driver delivers smooth, flicker-free dimming from 1–100%, making it ideal for modern commercial, residential and architectural lighting applications.
With a wide adjustable output current of 300–1050mA and an output voltage range of 2.5–54Vdc, a single driver can support a broad range of LED luminaires, reducing inventory requirements and simplifying product selection. Output current is easily configured using the built-in 4-bit DIP switch, providing 16 selectable current settings without the need for additional programming.

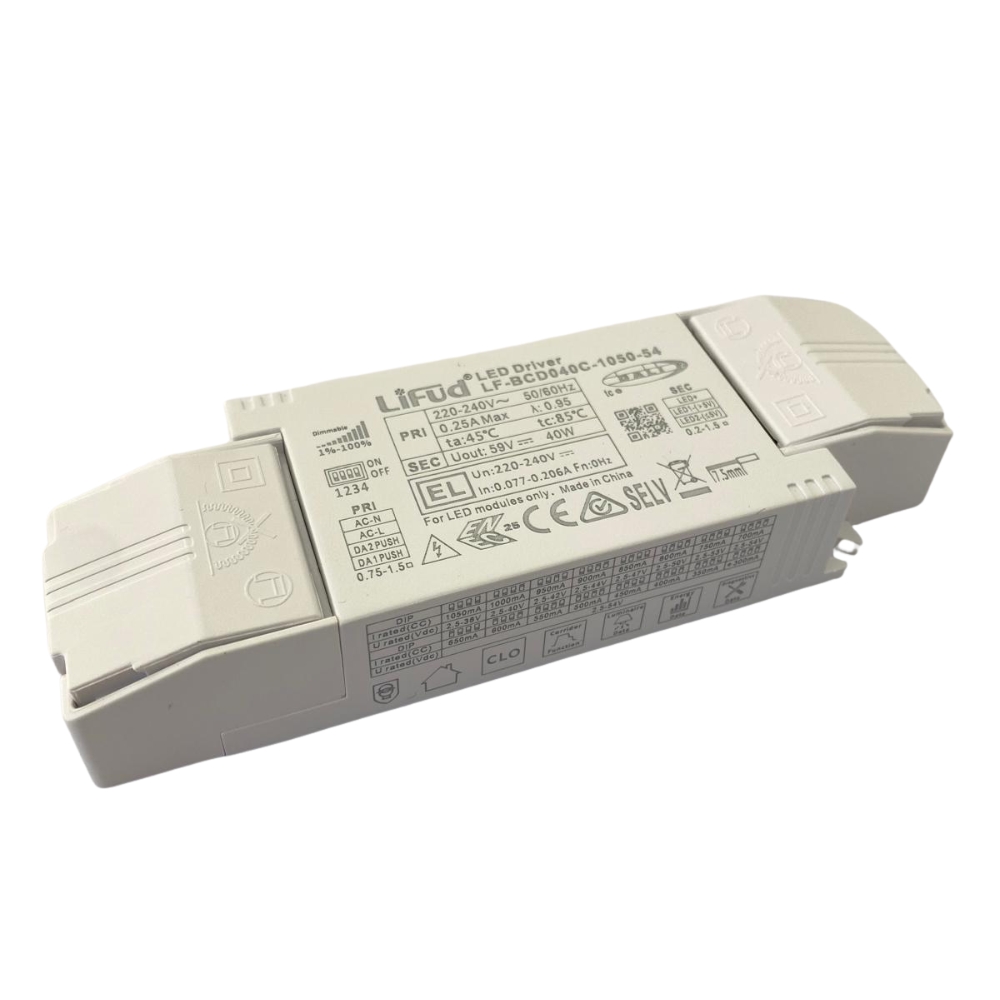

Designed with an ultra-slim 21.8mm profile, the LF-BCD040C-1050-54 is suitable for both built-in and independent installations, making it an excellent choice where installation space is limited.
Supporting advanced lighting control features including Emergency Lighting (EL), CorridorDIM, and Constant Light Output (CLO), the driver is also fully compliant with DALI-2 Parts 251, 252 and 253, with operating parameters configurable via a DALI programmer.
Built for long-term reliability, the driver offers up to 90% efficiency, low THD (≤10%), comprehensive protection against electrical faults, and a 100,000-hour design life, backed by a 5-year warranty.
| Output Current | Output Voltage Range | Power Range |
|---|---|---|
| 300mA | 2.5–54Vdc | 0.75–16.2W |
| 350mA | 2.5–54Vdc | 0.88–18.9W |
| 400mA | 2.5–54Vdc | 1.0–21.6W |
| 450mA | 2.5–54Vdc | 1.13–24.3W |
| 500mA | 2.5–54Vdc | 1.25–27.0W |
| 550mA | 2.5–54Vdc | 1.38–29.7W |
| 600mA | 2.5–54Vdc | 1.5–32.4W |
| 650mA | 2.5–54Vdc | 1.63–35.1W |
| 700mA | 2.5–54Vdc | 1.75–37.8W |
| 750mA | 2.5–53Vdc | 1.88–39.75W |
| 800mA | 2.5–50Vdc | 2.0–40.0W |
| 850mA | 2.5–47Vdc | 2.13–39.95W |
| 900mA | 2.5–44Vdc | 2.25–39.6W |
| 950mA | 2.5–42Vdc | 2.38–39.9W |
| 1000mA | 2.5–40Vdc | 2.5–40.0W |
| 1050mA | 2.5–38Vdc | 2.63–39.9W |
Key Features
- DALI-2 and Push dimmable operation
- Smooth, flicker-free dimming from 1–100%
- Adjustable output current from 300–1050mA via a 16-position DIP switch
- Wide output voltage range of 2.5–54Vdc
- Output power up to 40W
- High efficiency of up to 90%
- Low Total Harmonic Distortion (THD ≤10%)
- Ultra-slim 21.8mm housing for space-saving installations
- Supports Emergency Lighting (EL), CorridorDIM, and Constant Light Output (CLO)
- DALI-2 compliant (Parts 251, 252 & 253)
- Parameters configurable using a DALI programmer
- Suitable for both Class I and Class II luminaires
- Built-in and independent installation options
- Comprehensive protection including Over Voltage, Under Voltage, Short Circuit, Over Current, Over Temperature and Overload protection
- Surge protection: 2kV (L-N) and 1kV (Push)
- Up to 100,000-hour service life
- 5-year manufacturer’s warranty
Typical Applications
The LF-BCD040C-1050-54 is ideal for a wide range of LED lighting applications, including:
- LED downlights
- LED panel lights
- LED ceiling lights
- Office lighting
- Residential lighting
- Commercial lighting
- Architectural and retail lighting
