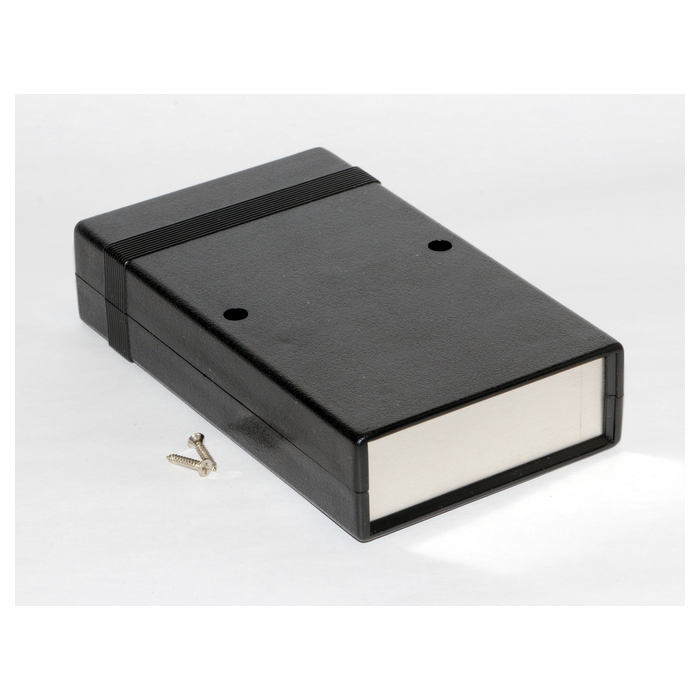

1598ABK | PLASTIC INSTRUMENT ENCLOSURE BLACK 155x92x35mm

• Desk top electronic instrument enclosure, ideally suited for mounting printed circuit boards.
• Molded from flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).
• Designed to meet IP54.
• Two sets of vertical 1.5 mm P.C. board guides are molded into case halves front and rear.
• Front and rear panels are 1.6 mm brushed aluminum with protective paper on one side.
• Enclosure halves are secured with M3 x 10 mm Phillips machine screws threaded into tapped integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required.
• Integral horizontal P.C. card mounts on Eurocard centers.

Data Sheet
