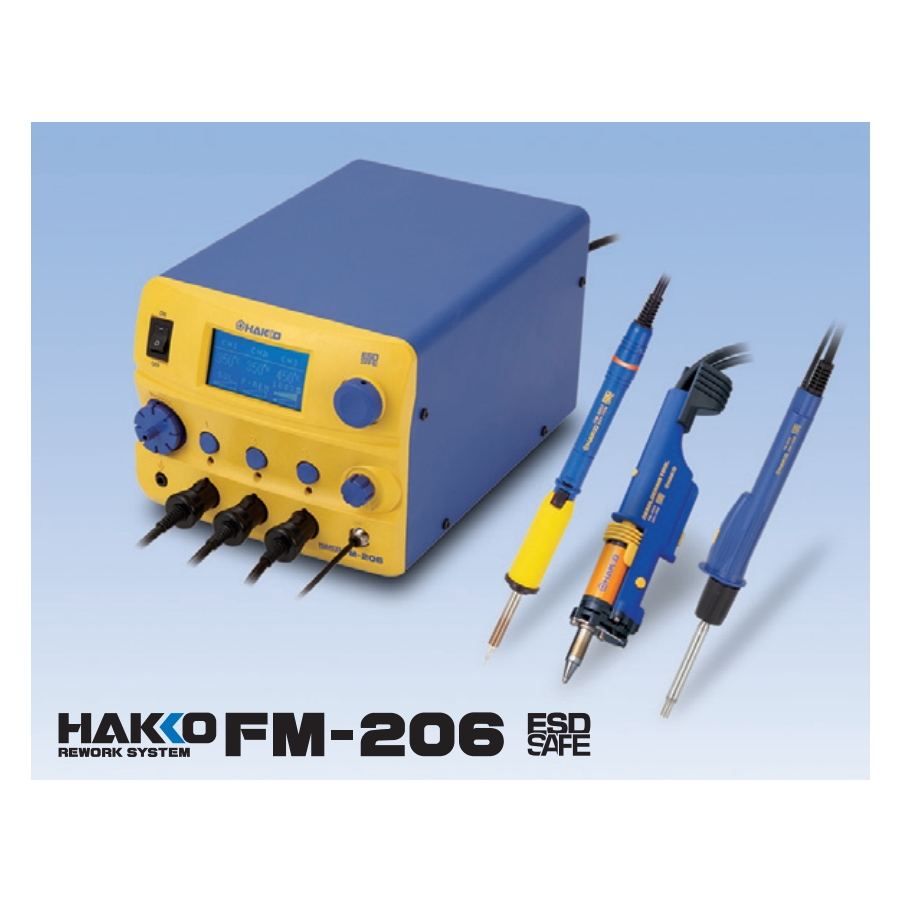

FM-206-20 | HAKKO FM-206 REWORK SYSTEM
| |

FM-206-20 | HAKKO FM-206 REWORK SYSTEM

SKU: FM-206-20

Availability:

Out of stock

  • Multi-station that enables soldering, desoldering, and SMD rework all with a single unit
  • Single-nozzle hot air handpiece comes as standard equipment
  • Graphic LCD enables easy viewing and operation

*** DISCONTINUED MODEL ***

Not available online - Call us for further details
  • Out of Stock
    FM-206-20 | HAKKO FM-206 REWORK SYSTEM

    FM-206-20 | HAKKO FM-206 REWORK SYSTEM

    SKU: FM-206-20

    Availability: 0 in stock

    Not available on line - Call us for further details

  • FM-2026-03 | HAKKO FM-2026 N2 SOLDERING PENCIL

    FM-2026-03 | HAKKO FM-2026 N2 SOLDERING PENCIL

    SKU: FM-2026-03

    Availability: 0 in stock

    Qty Price Per Unit Total Price
    1+ $363.28 Incl GST $330.25 Excl GST $363.28 Incl GST $330.25 Excl GST
  • FM-2022 | HAKKO TWEEZERS MINI

    FM-2022 | HAKKO TWEEZERS MINI

    SKU: FM-2022-04

    Availability: 0 in stock

    Qty Price Per Unit Total Price
    1+ $440.28 Incl GST $400.25 Excl GST $440.28 Incl GST $400.25 Excl GST
$730.50 Exc GST for 3 item(s)
  • Combines soldering, desoldering, and rework functions in a compact body.
  • Features expandability in which the handpiece can be switched as needed for added functions.
  • Comes with hot air-type rework functions and expands the range of repair of SMD parts with hot air handpiece.

SKU : FM-206-20

Categories : Hakko > Soldering > Soldering Irons, Stations and Rework Equipment

Tags : Hakko, Solder Station

Power consumption 410W (Max.)
Temperature range FM-2026/2027：200 to 450ºC
FM-2022/2023：200 to 400ºC
FM-2024：350 to 450ºC
FM-2029：100 to 550ºC
FM-2030：200 to 500ºC
FM-2031：200 to 500ºC
FM-2032：200 to 450ºC
Temperature stability ±5ºC at idle temperature



Station

Output voltage AC 24V
Vacuum generator Vacuum pump, cylinder type
Vacuum pressure 80kPa (600mmHg) (Max.)
Suction flow 14L/min.
Air flow 6L/min. (Max.)
Dimensions 162(W)×136(H)×245(D)mm
Weight 6.2kg



Soldering Iron

Power consumption 70W (24V)
Tip to ground resistance <2Ω
Tip to ground potential <2mV
Heating element Composite heater
Cord length 1.2m
Total length 188mm (with 2.4D tip)
Weight 30g (with 2.4D tip)



Desoldering Tool

Power consumption 70W (24V)
Nozzle to ground resistance <2Ω
Nozzle to ground potential <2mV
Heating element Composite heater
Cord length 1.2m
Total length 180mm (with Φ1.0mm nozzle)
Weight 65g (with Φ1.0mm nozzle)



Handpiece (Hot air) : for FM-206

Power consumption 140W (24V)
Nozzle to ground resistance <2Ω
Nozzle to ground potential <2mV
Heating element Composite heater
Cord length 1.2m
Total length 232mm (with Φ4.0mm nozzle)
Weight 50g (with Φ4.0mm nozzle)
