FA-400-14 Hakko Portable Fume Absorber


SKU: FA-400-14

Availability:

Available on back-order


$192.00 Exc GST

Qty Price Per Unit Total Price
1+ $211.20 Incl GST $192.00 Excl GST $211.20 Incl GST $192.00 Excl GST
  • Hakko FA-400
  • A1001 Hakko Replacement Filter Suits FA400/493 Pack of 5
  • C1568 Hakko Arm Stand to Suit FA-400 Fume Absorber
$526.65 Exc GST for 3 item(s)

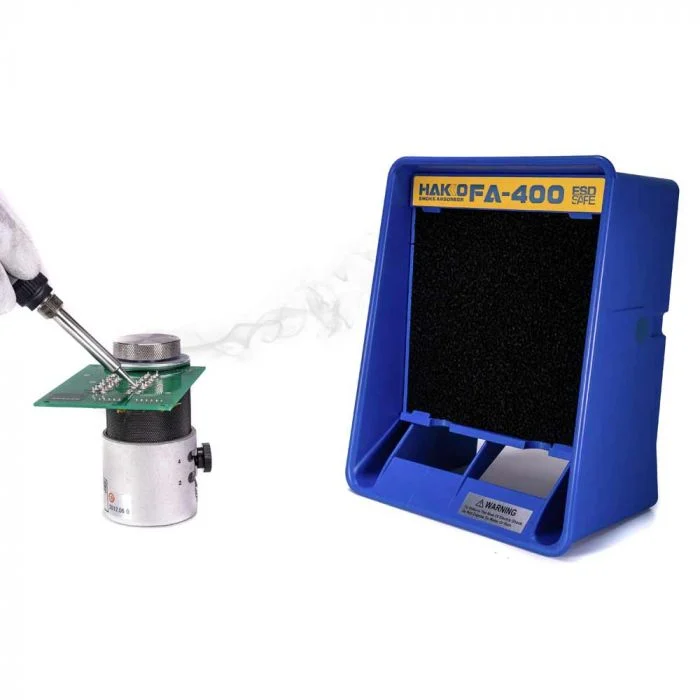

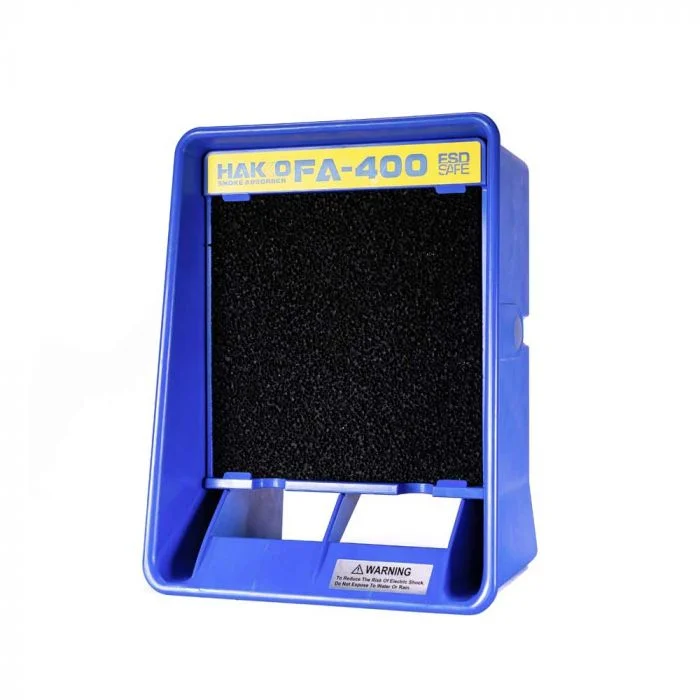

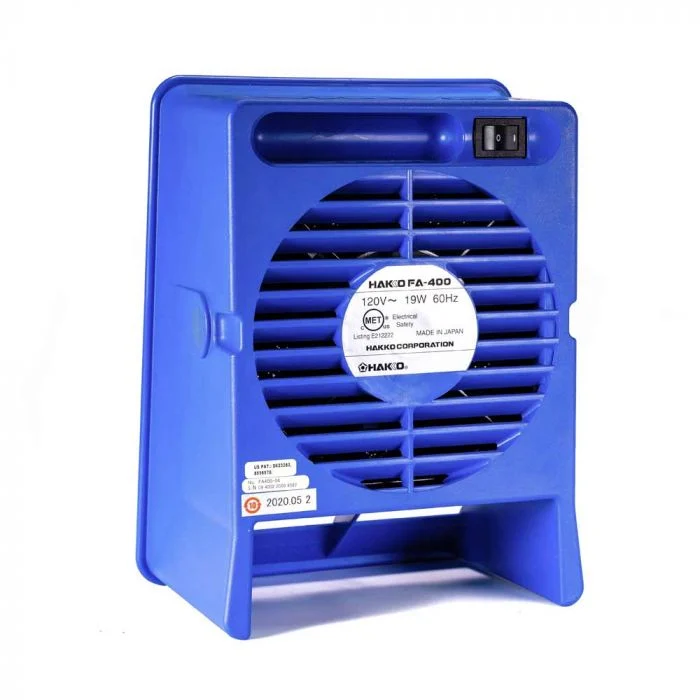

Hakko FA-400 Portable Fume Absorber

The FA-400 is a high-performance ESD-safe fume absorber designed to efficiently remove soldering smoke and fumes from your workspace. Built from non-sloughing static dissipative conductive material, this unit ensures a clean and safe environment while operating quietly.

With its versatile design, the FA-400 can be used in a vertical (standing up) position for standard operation or laid flat in a low-profile position to maximize fume absorption directly at the source. The included standard activated carbon filter (PN: A1001) absorbs up to 80% of airborne odours and is easy to replace, maintaining optimal performance with minimal effort.

The FA-400 is compatible with existing 493 filters and accessories, making it a seamless upgrade or addition to your current setup. Whether you’re working in electronics, soldering, or any application requiring fume extraction, the FA-400 delivers powerful, reliable, and ESD-safe protection for your workspace.

Hakko FA-400 Instruction Manual

Hakko FA-400 Brochure

SKU : FA-400-14

Categories : Fume Extraction > Hakko > Soldering

Tags : Fume Extraction, Hakko, Solder

Specification Details
Model No. FA-400
Power Consumption 50 Hz: 15 W (100 V), 18 W (110 V), 19 W (220 V), 22 W (230 V), 24 W (240 V)
60 Hz: 13 W (100 V), 15 W (110 V), 19 W (120 V), 16 W (220 V), 18 W (230 V), 19 W (240 V)
Noise Level 50 Hz: 48 dB
60 Hz: 51 dB
Max. Suction Capacity Vertical: 1.0 m³/min (50 Hz) / 1.1 m³/min (60 Hz)
Horizontal: 0.4 m³/min (50 Hz) / 0.5 m³/min (60 Hz)
Air Velocity Vertical: 1.0 m/sec (50 Hz) / 1.1 m/sec (60 Hz)
Horizontal: 2.6 m/sec (50 Hz) / 2.9 m/sec (60 Hz)
Filter Size 130 mm (W) × 130 mm (H) × 10 mm (D)
Dimensions 166 mm (W) × 212 mm (H) × 113 mm (D)
Weight 0.91 kg
