$0.76 Exc GST for 3 item(s)
3.96mm Wire To Board Connectors, Chyao Shiunn, Connectors

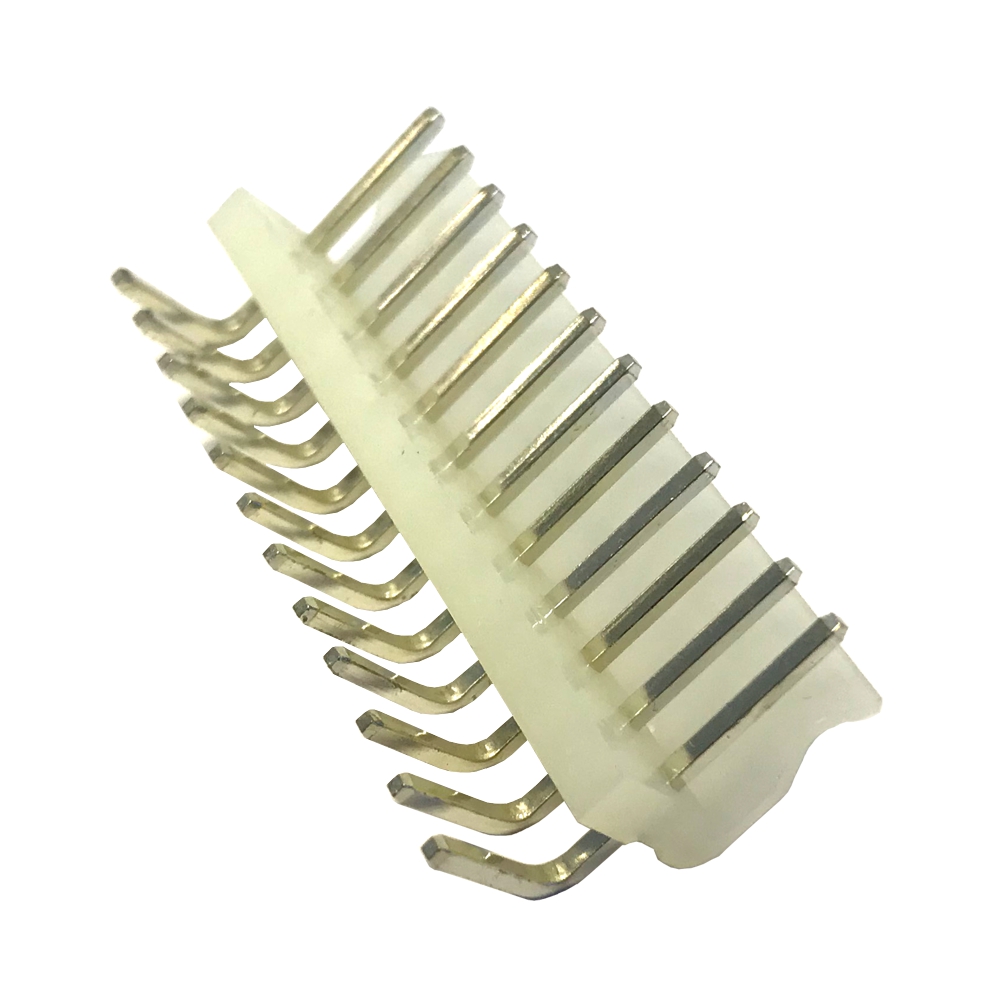

JS-4001R-12 | LOCKING HEADER RIGHT ANGLE 3.96MM 12-WAY
SKU: JS-4001R-12
Availability:
997 in stock (can be backordered)
997 in stock (can be backordered)
| Quantity | Price Per Unit |
|---|---|
| 1+ | $0.53 Incl GST $0.48 Excl GST |
| 100 | $0.33 Incl GST $0.30 Excl GST |
| 1000 | $0.26 Incl GST $0.24 Excl GST |
| Poles: | 12 |
| Profile: | Right Angle (90°) |
| Dimensions: | Refer Drawing |
| Voltage Rating: | 250V AC/DC |
| Current Rating: | 7A AC/DC |
| Withstanding Voltage: | 1500V AC/minute |
| Insulation Resistance: | 1000MΩ min |
| Temperature Range: | -25℃ to +85℃ |
| Contact Resistance: | 20mΩ max |
| Material: | Nylon 66 / Brass |
