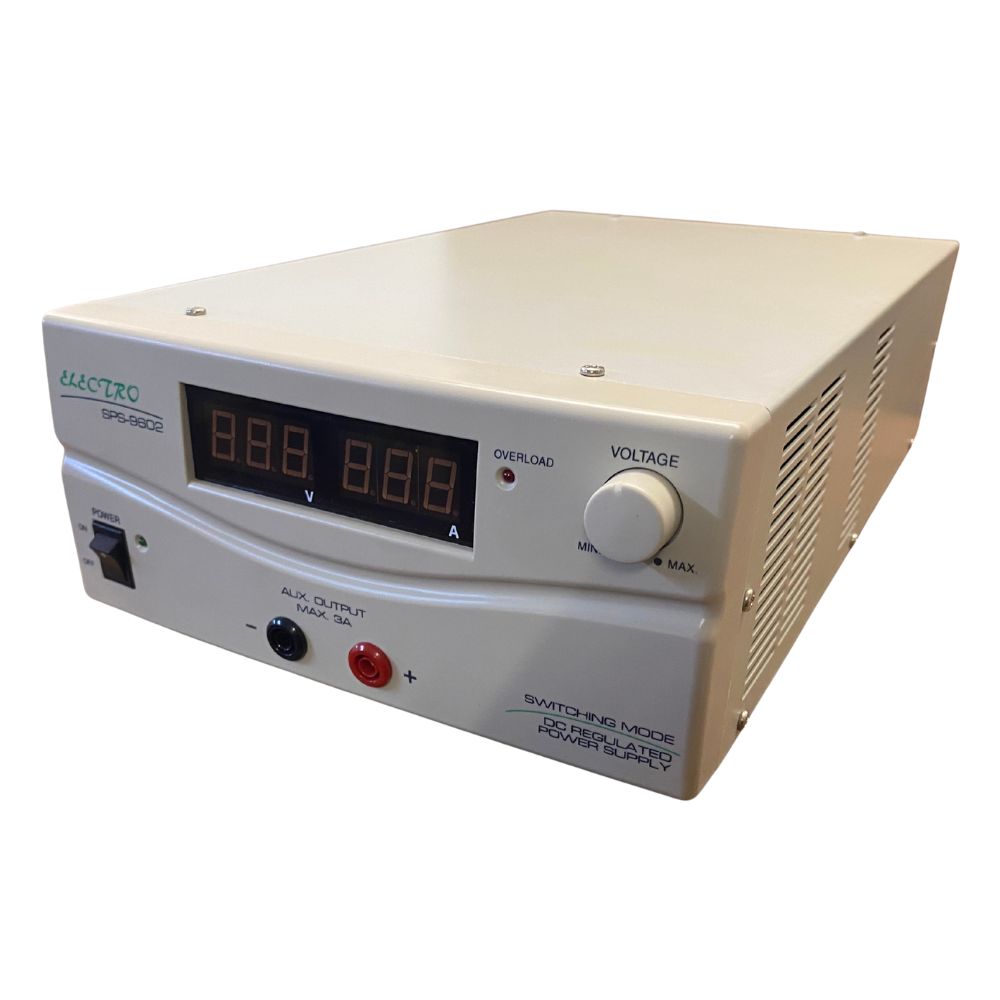

1-30V 30A Benchtop Power Supply
This high current switching mode DC regulated output power supply is designed with a high efficient active power factor correction. The constant current limiting protection allows the output current to remain stable, but the output voltage decreases to a level that permits safe operation of the power supply. The remote sensing terminals are used to compensate for output line losses so that a precise regulation can be achieved for critical voltage application away from the power supply. The output voltage level and ON-OFF can be externally controlled via the remote terminal. It is ideal for applications that need good quality high DC current network with precise point of voltage regulation. The SPS-9602 has a small footprint for its 900W continuous maximum power.
- Total max. continuous output current 30A (SPS-9602)
- Main Output / Remote Sensing / Remote Control / terminals at the back
- Front terminals 3A (SPS-9602) limiting
- Precise Load Point Voltage
- Remote Sensing for remote point of regulation
- Analogue Remote control terminals for output voltage adjustment and *on/off*
- Floating Ground Design
- Overload / Over-temperature / Short Circuit Protections
- Constant Current mode with LED indicator prevents overloading
- Variable speed thermally controlled fan
- High RFI stability
- Active power factor correction ( P.F. > 0.97 )
- Housing are available in Pantone warm grey 1C or Pantone 433C dark grey
- Overload protection with constant current
- Low Ripple & Noise
