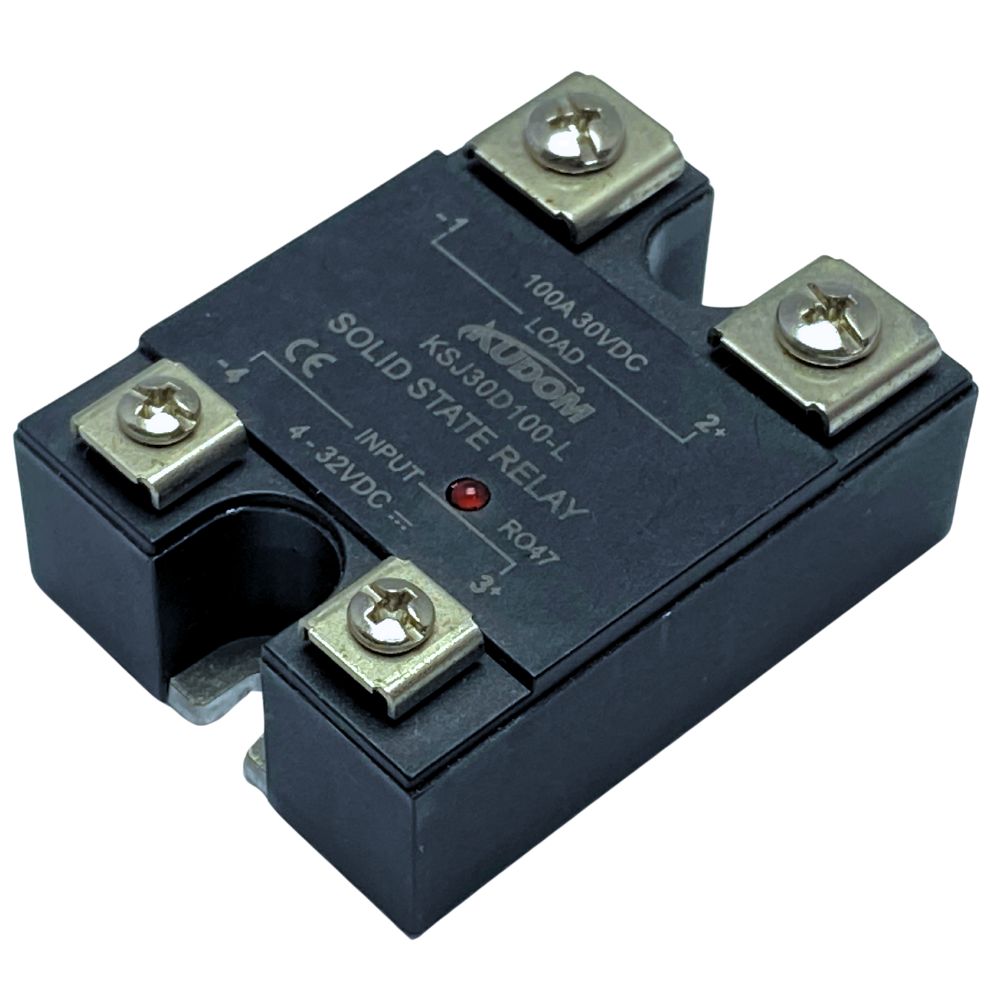

Solid State Relay 4-32V DC Input 30V DC 100A Switching
This panel mount solid state relay is designed for efficient and reliable switching of high current DC loads up to 100A at 30VDC. Utilising advanced MOSFET technology, it provides silent, arc-free operation and eliminates the need for bulky mechanical contactors. With a control input range of 4–32VDC, this relay is ideal for medium to high power DC applications across industrial automation, battery systems, and motor control. Its ultra-low on-state resistance of just 0.007 ohms ensures minimal power loss and heat generation, making it an energy-efficient solution.
Note: Inductive loads must be fitted with diode suppression (refer to data sheet wiring diagram for proper installation).
Features
-
Reliable MOSFET-based switching technology
-
Wide control voltage range: 4–32VDC
-
Switches up to 100A at 30VDC
-
Ultra-low on-state resistance (0.007Ω)
-
Fast switching times: 0.5ms on/off
-
Panel mount design with compact footprint
-
Ideal for replacing mechanical contactors
-
No arcing during operation, ensuring long-term durability
-
Lightweight construction at just 0.11kg
