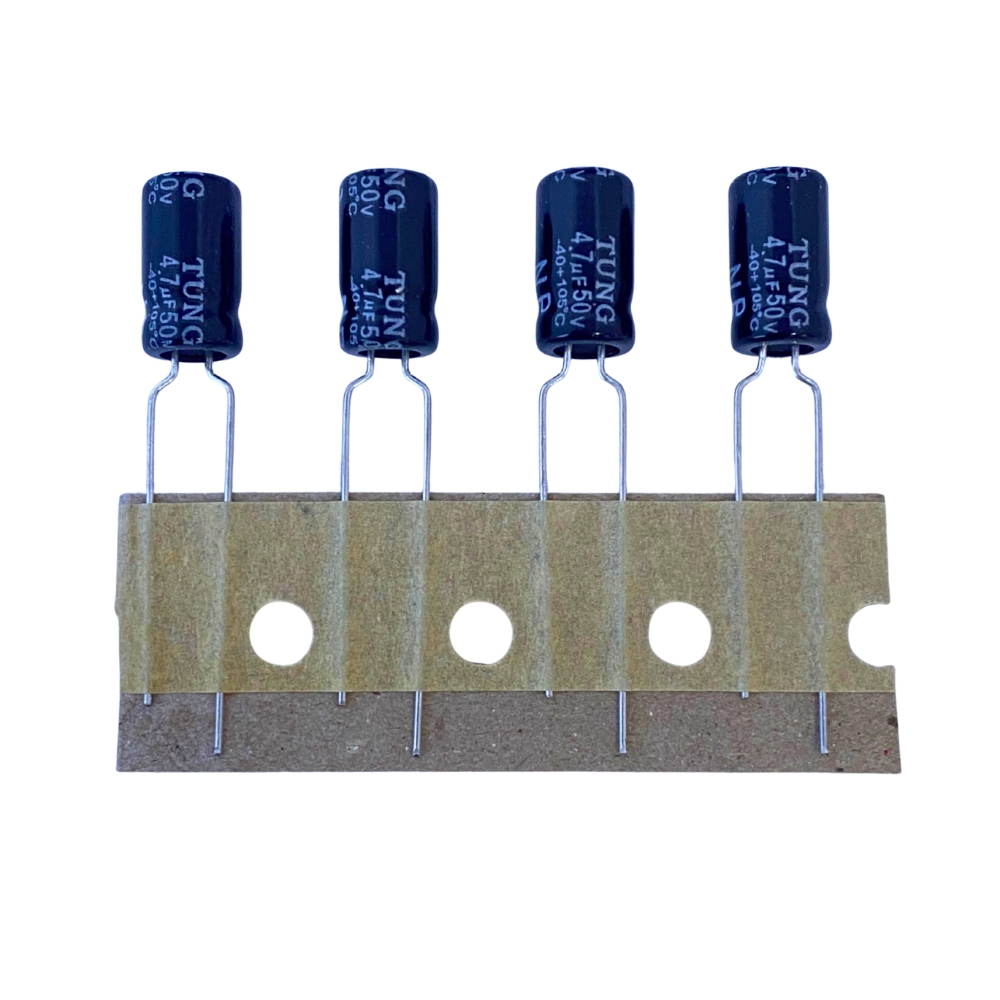

4.7uF 50V 20% 105°C 5x11mm Bipolar Electrolytic Capacitor Tape and Reel
The 4.7uF 50V bipolar (non-polarized) electrolytic capacitor in a compact 5x11mm size with a 5mm lead pitch is designed for AC signal applications where polarity may reverse. Supplied in tape and reel packaging, it is ideal for automated PCB assembly. Rated for operation up to 105°C with a ripple current of 19mA, this capacitor ensures reliable performance in audio crossover networks, AC coupling, and timing circuits.
-
Capacitance: 4.7uF
-
Voltage Rating: 50V DC
-
Tolerance: ±20%
-
Operating Temperature: -40°C to +105°C
-
Dimensions: 5mm (Diameter) x 11mm (Length)
-
Lead Pitch: 5mm
-
Ripple Current: 19mA
-
Packaging: Tape and Reel for automated assembly
-
Type: Bipolar (Non-Polarized) Electrolytic Capacitor
-
Applications: Audio crossovers, AC signal coupling, timing circuits, automated PCB assembly
