RGB+CCT 4 Zone Remote Control


SKU: FUTC5B

Availability:

7 in stock (can be backordered)

Contact us or Register for Trade, Wholesale/ Reseller Pricing.


$39.00 Exc GST

Qty Price Per Unit Total Price
1+ $42.90 Incl GST $39.00 Excl GST $42.90 Incl GST $39.00 Excl GST

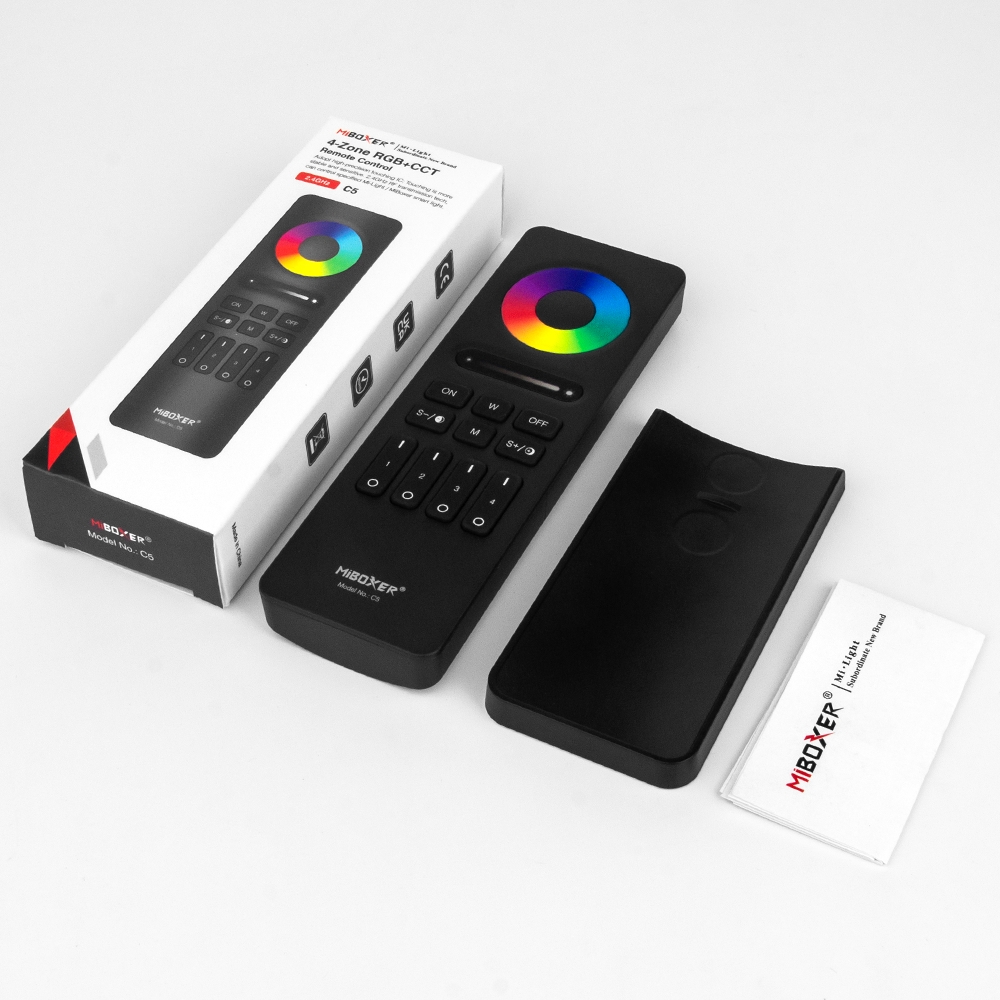

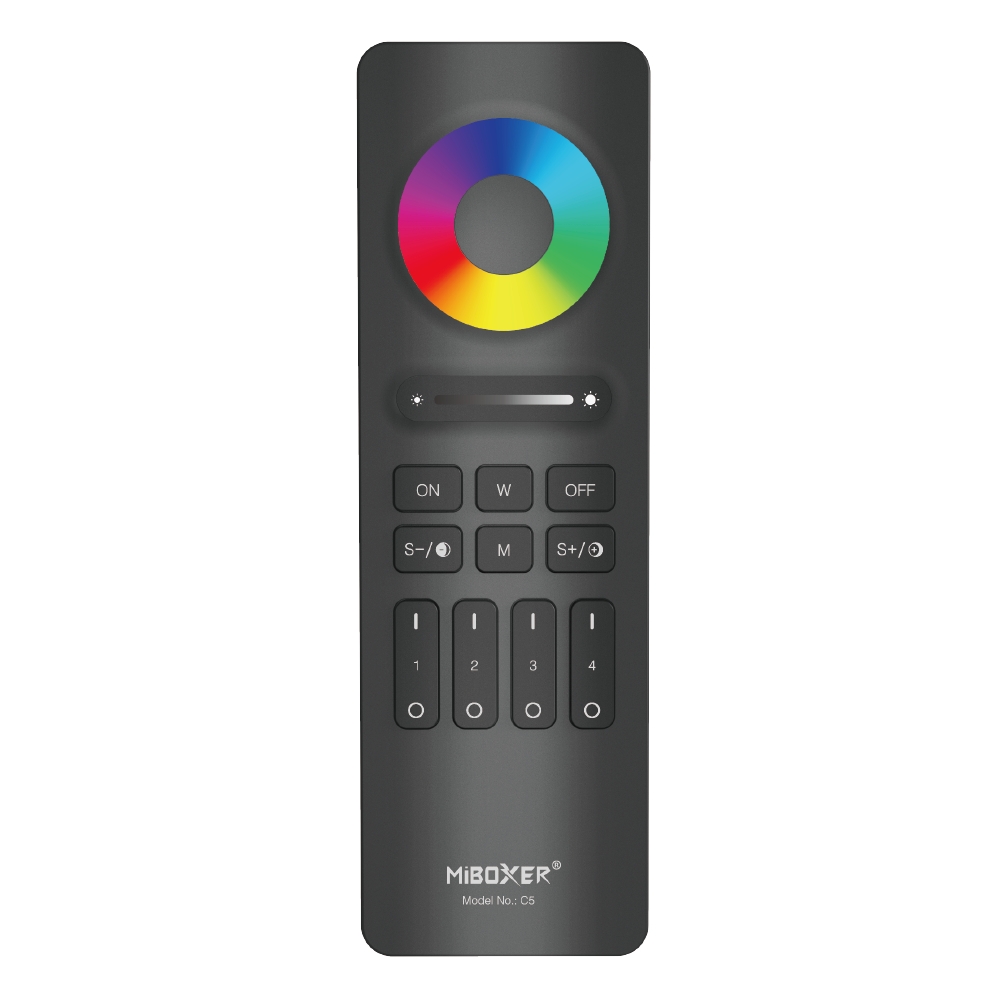

RGB+CCT 4 Zone Remote Control

This 4-Zone RGB+CCT Remote Controller is a versatile and user-friendly lighting control solution designed to give you complete freedom over your lighting environment. Supporting four independent zones, a single remote can control countless compatible controllers and lamps, making it ideal for both residential and commercial applications.

Using 2.4GHz RF wireless transmission technology, the FUTC5B provides a reliable control distance of up to 30 metres, allowing seamless control of lighting without the need for line-of-sight. It is fully compatible with our range of 2.4GHz series lamps and controllers, enabling you to effortlessly adjust colour, colour temperature, brightness, flashing speed and dynamic lighting modes to suit any scene or mood.

With access to 16 million colours, adjustable CCT range, and smooth dimming control, you can easily create the perfect lighting atmosphere for living spaces, entertaining areas, or feature lighting. The remote is powered by 2 × AAA batteries (3V) and features ultra-low standby power consumption of just 15 μA, ensuring long battery life.

Designed for everyday convenience, the FUTC5B includes a strong sticky backing to the base with a magnetic hold to the remote control, allowing it to be securely mounted many surfaces or stored neatly when not in use. Built to meet CE, EMC and RED standards, it offers dependable performance and compliance with relevant European safety and radio equipment regulations.

We recommend pair this remote with either of the below controllers:

Wi-Fi 5 In 1 LED Strip Controller

High Power Wi-Fi 5 In 1 LED Strip Controller 30A

IP67 Wi-Fi 5 In 1 Led Strip Controller

We recommend pair this remote with either of the below light fittings:

Garden Spike Light RGB+CCT 6W 12VAC/ 12-24V DC

Garden Light RGB+CCT 9W 24VDC

Parameter Specification
Product Name 4-Zone RGB+CCT Remote
Model No. FUTC5
Working Voltage 3V (2 × AAA batteries)
Standby Power Consumption 15 μA
Transmitting Power 6 dBm
RF Frequency 2.4 GHz
Modulation Method GFSK
Control Distance Up to 30 m
Working Temperature −10 °C to 40 °C
EMC Standard (EMC) ETSI EN 301 489-1 V2.2.3 (2019-11)ETSI EN 301 489-3 V2.3.2 (2023-01)
Safety Standard (LVD) EN 61347-2-11:2001 +A1:2019EN 61347-1:2015 +A1:2021EN 62493:2015 +A1:2022
Radio Equipment (RED) ETSI EN 300 440 V2.2.1 (2018-07)
Certification CE, EMC, RED

FUTC5B Manual
