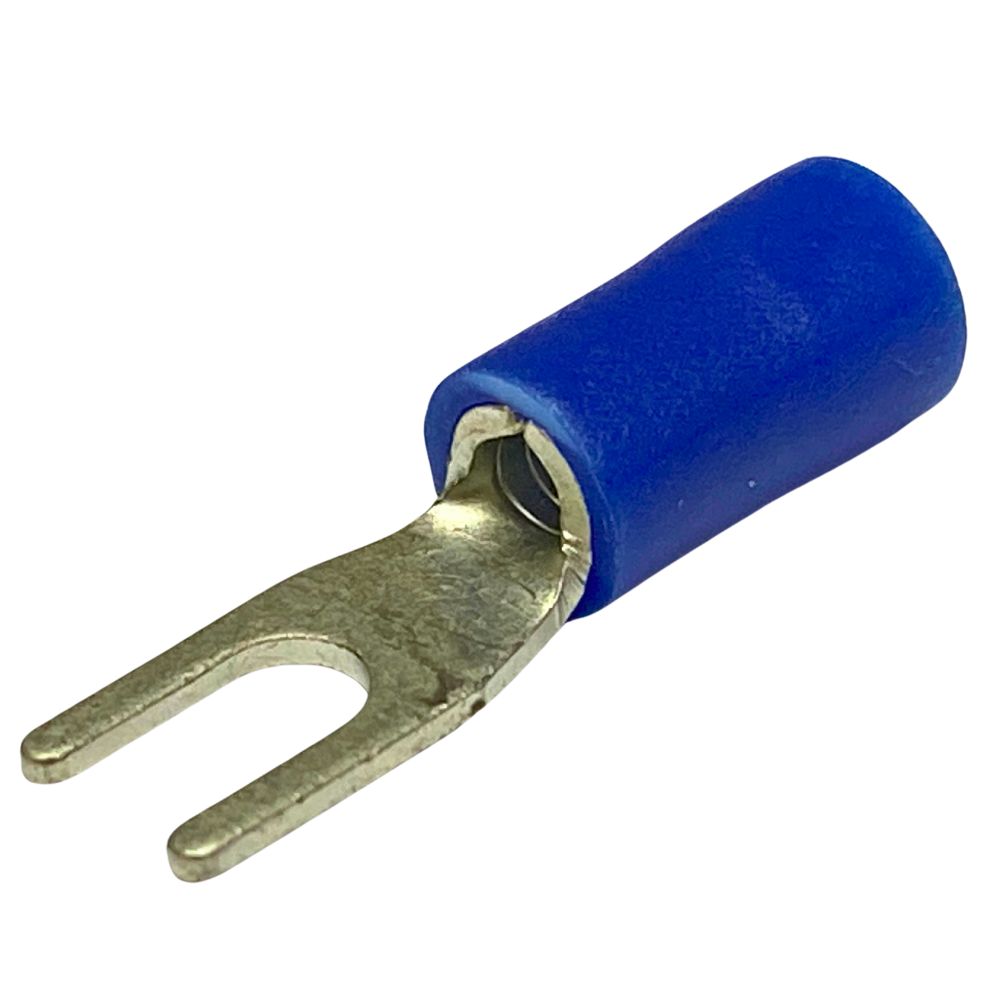

Vinyl insulated fork terminal with butted seam.
- Wire size: 1.5 – 2.5mm (16-14awg)
- Stud size: 3.2mm
- Insulation Colour: Blue
- Current Rating: 30A max (14awg)
- Voltage Rating: 600v max @ 105°C
- Terminal Material: Copper
L=21mm W=5.7mm F=6.5mm d2=3.2mm E=10mm D=4.5mm d1=2.3mm T=0.8mm
