The LJE0352-4R is widely used for connecting headphones, speakers, and various audio devices, offering superior sound quality and supporting microphone input.
Audio Connector | Connectors

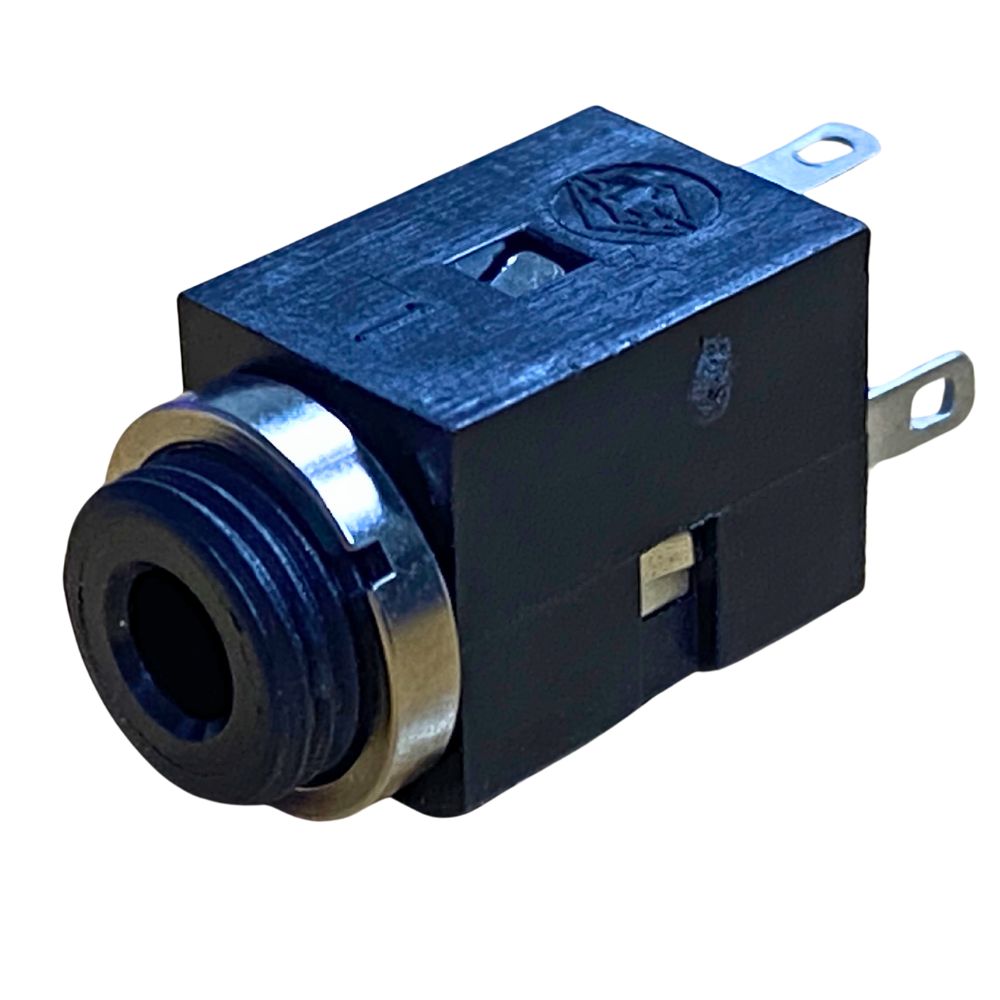

LJE0352-4R | PHONE JACK 3.5MM VERTICAL PCB MOUNT OR PANEL MOUNT
SKU: LJE0352-4R
Availability:
1800 in stock (can be backordered)
$1.75 Exc GST
| Qty | Price Per Unit | Total Price |
| 1+ | $1.93 Incl GST $1.75 Excl GST | $1.93 Incl GST $1.75 Excl GST |
| 25 | $1.32 Incl GST $1.20 Excl GST | $33.00 Incl GST $30.00 Excl GST |
| 100 | $0.83 Incl GST $0.75 Excl GST | $82.50 Incl GST $75.00 Excl GST |
|
Electrical Rating |
1A / 12V DC Max. |
|
Durability |
5000 Mating Cycles |
|
Insertion |
0.3 ~ 3.0 Kgf |
|
Withdrawal force |
0.3 ~ 2.0 Kgf |
|
Operating Temperature |
-25°C to 70°C |
|
Soldering heat |
260±5°C / DIP time : 5±1 seconds |
|
Flammability |
UL 94V-0 Rated |
|
Environmental friendly |
RoHS , REACH |
|
Certificate |
ISO 9001 |
