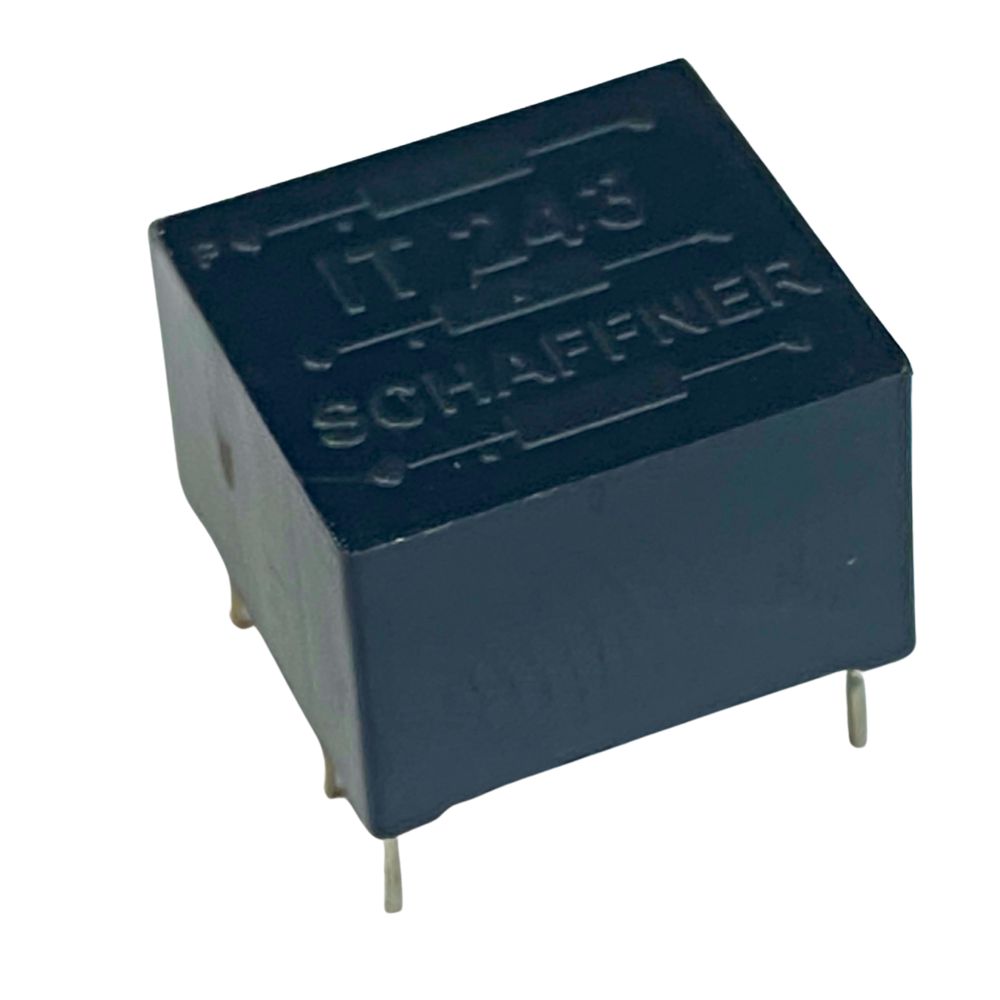

Pulse Transformer with Double Secondary Winding 0.1A 500VAC 1:1:1
Product Description:
This pulse transformer features a double secondary winding design, ideal for applications that require efficient data transmission or ignition currents. It supports a maximum operating voltage of 500V and operates at frequencies up to 500 kHz. The transformer is built for durability and reliability, with a wide operating temperature range and low partial discharge voltage.
Features:
-
Nominal Operating Voltage: Up to 500V
-
Operating Frequency: Max 40 kHz (up to 500 kHz for data transmission)
-
Ignition Currents: 0.025 to 1A @ 40°C
-
Rise Time: 0.4 to 4 µs
-
Test Voltage: Up to 50 Hz for 2 seconds, max. according to VDE 110b
-
Max Partial Discharge Voltage: 1.5 x Unom
-
Temperature Range: -25°C to +70°C (25/70/21)
-
Flammability Rating: UL 94 V-0 listed materials
