SKU : 982-11-A25041
Categories : Connectors > D-Sub Connectors > Pinrex
Tags : 25-Way, Connector, D-Sub, Right Angle
Connectors | D-Sub Connectors | Pinrex

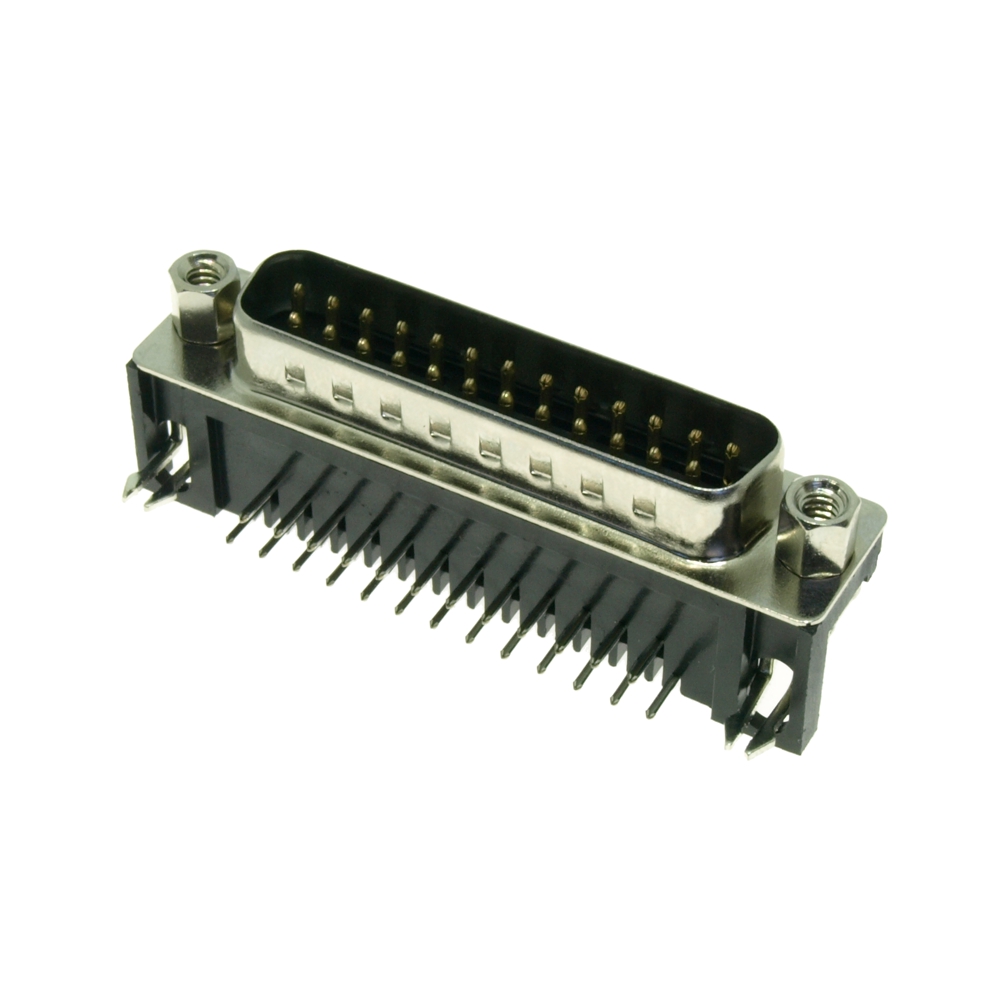

982-11-A25041 | D-SUB PCB RIGHT ANGLE CONNECTOR 25-WAY MALE WITH FRONT JACK SCREW
SKU: 982-11-A25041
Availability:
1038 in stock
$1.00 Exc GST
| Qty | Price Per Unit | Total Price |
| 1+ | $1.10 Incl GST $1.00 Excl GST | $1.10 Incl GST $1.00 Excl GST |
| 25 | $0.94 Incl GST $0.85 Excl GST | $23.38 Incl GST $21.25 Excl GST |
| 100 | $0.83 Incl GST $0.75 Excl GST | $82.50 Incl GST $75.00 Excl GST |
| Contacts: | 25 |
| Type: | R/Angle D-Sub Solder Type with Jack Screw |
| Gender: | Male |
| Dimensions: | Refer Data Sheet |
| Current Rating: | 1A |
| Insulation Resistance: | 1000MΩ min. @ 500VDC |
| Contact Resistance: | 30mΩ max. @ 100mA |
| Material: | Polyester / Copper Alloy |
| Operating Temp: | -55 ~ +105°C |
