SKU : 216-71-40GB01
Categories : Connectors > Pinrex > Pinstrips 2.54mm
Connectors | Pinrex | Pinstrips 2.54mm

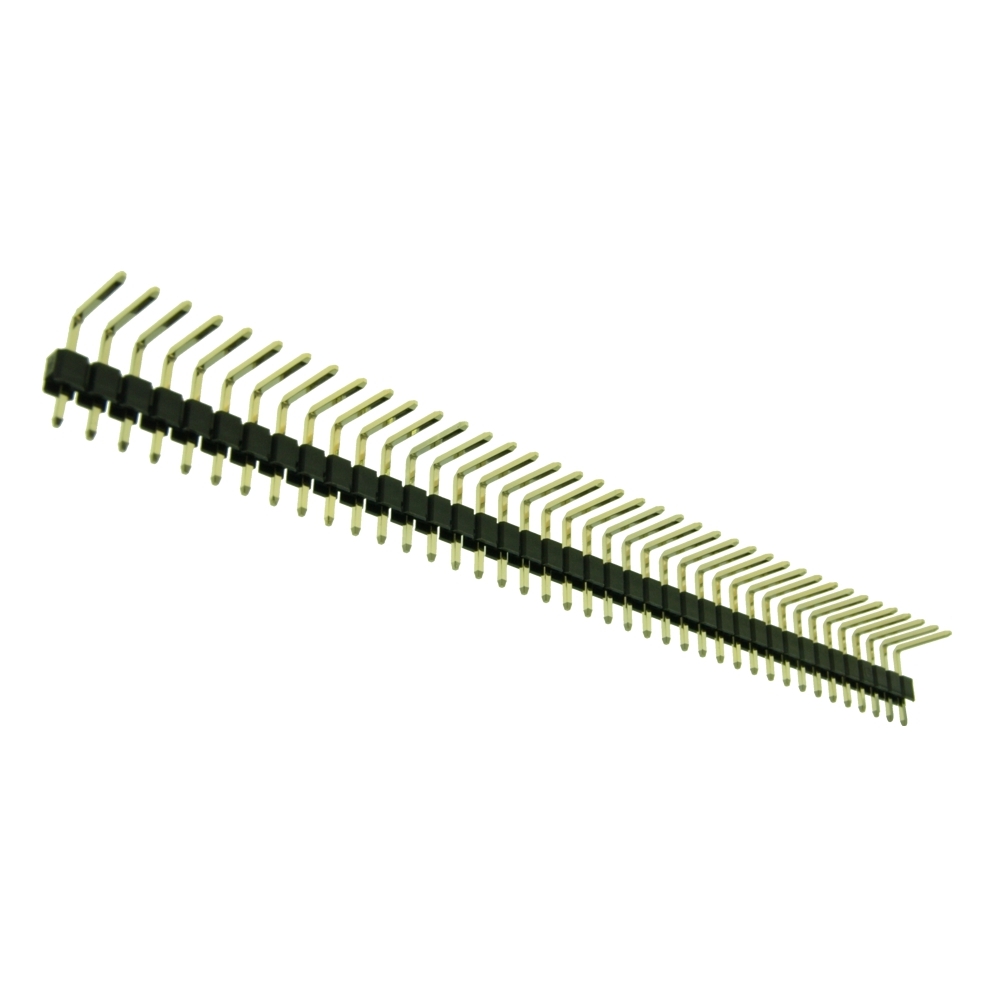

216-71-40GB01 | PIN STRIP RIGHT ANGLE 1×40 GOLD 2.54MM
SKU: 216-71-40GB01
Availability:
910 in stock
$1.00 Exc GST
| Qty | Price Per Unit | Total Price |
| 1+ | $1.10 Incl GST $1.00 Excl GST | $1.10 Incl GST $1.00 Excl GST |
| 25 | $0.88 Incl GST $0.80 Excl GST | $22.00 Incl GST $20.00 Excl GST |
| 100 | $0.53 Incl GST $0.48 Excl GST | $52.80 Incl GST $48.00 Excl GST |
| Contacts: | Single Row 1×40 Pins |
| Pitch: | 2.54mm |
| Contact Type: | PCB Mount Right Angle |
| Dimensions: | Refer Data Sheet |
| Current Rating: | 3A |
| Insulation Resistance: | 5000MΩ min. @ 500VDC |
| Contact Resistance: | 20mΩ max. @ 100mA DC |
| Material: | High Temp Polyester / Brass |
| Operating Temp: | -40 ~ +105°C |
