SKU : 216-71-06GB01
Categories : Connectors > Pinrex > Pinstrips 2.54mm
Connectors | Pinrex | Pinstrips 2.54mm

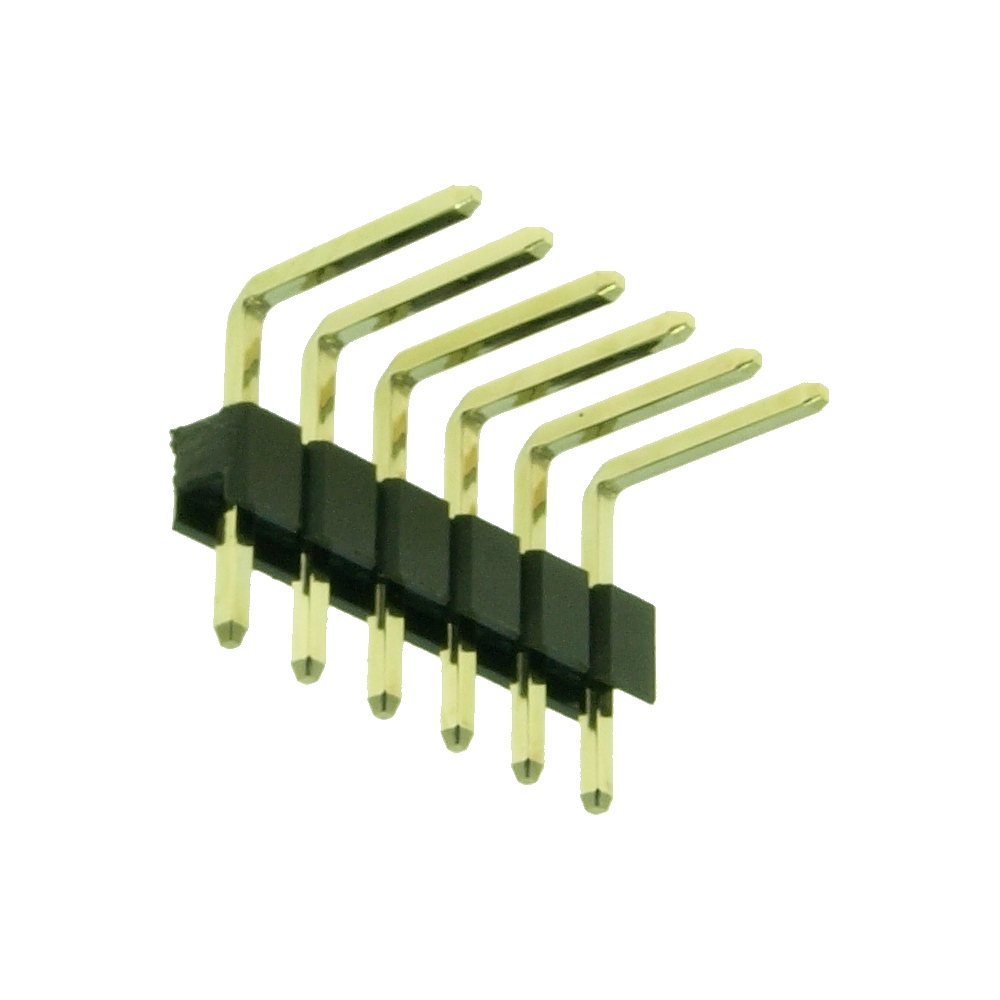

216-71-06GB01 | PIN STRIP RIGHT ANGLE 1×06 GOLD 2.54MM
SKU: 216-71-06GB01
Availability:
1 in stock (can be backordered)
$0.25 Exc GST
| Qty | Price Per Unit | Total Price |
| 1+ | $0.28 Incl GST $0.25 Excl GST | $0.28 Incl GST $0.25 Excl GST |
| 25 | $0.18 Incl GST $0.16 Excl GST | $4.40 Incl GST $4.00 Excl GST |
| 100 | $0.11 Incl GST $0.10 Excl GST | $11.00 Incl GST $10.00 Excl GST |
| Contacts: | Single Row 1×06 Pins |
| Pitch: | 2.54mm |
| Contact Type: | PCB Mount Right Angle |
| Dimensions: | Refer Data Sheet |
| Current Rating: | 3A |
| Insulation Resistance: | 5000MΩ min. @ 500VDC |
| Contact Resistance: | 20mΩ max. @ 100mA DC |
| Material: | High Temp Polyester / Brass |
| Operating Temp: | -40 ~ +105°C |
