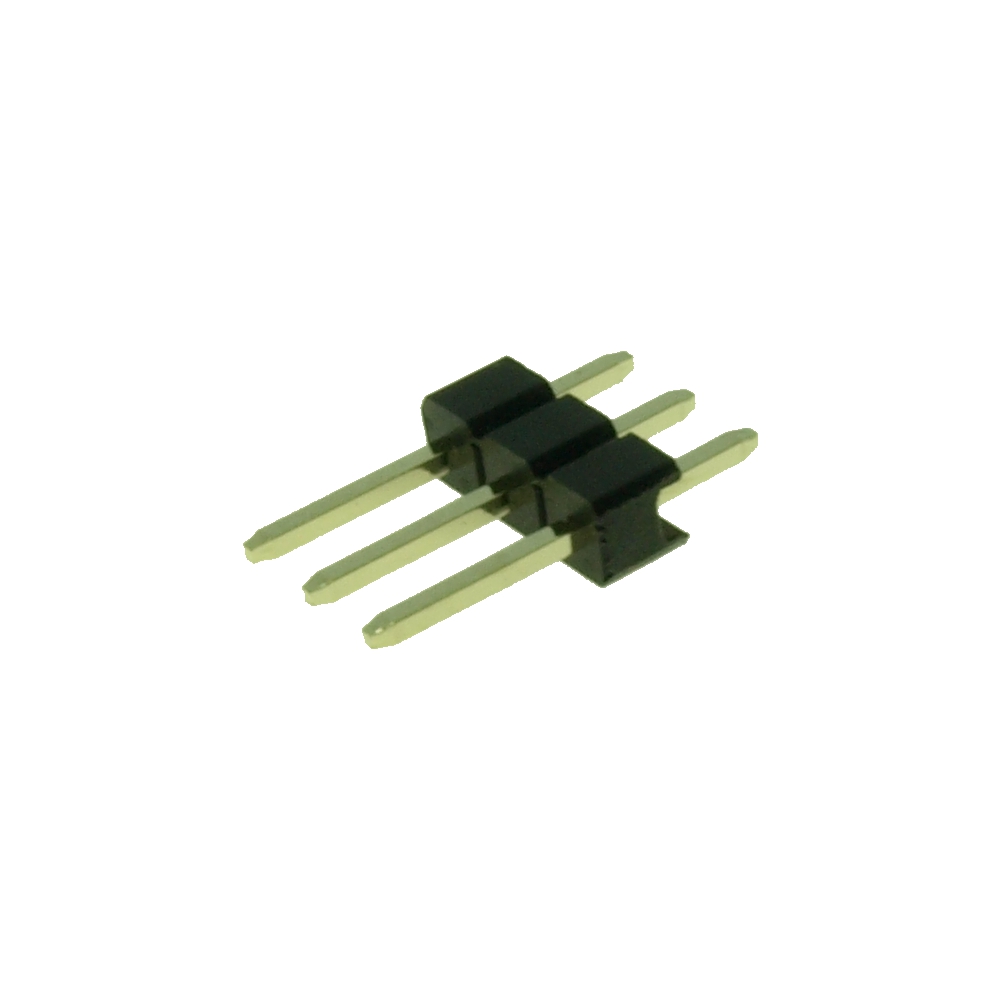

3 Way Header Pin Strip 2.54mm Pitch
Connectors | Pinrex | Pinstrips 2.54mm
3 Way Header Pin Strip 2.54mm Pitch
SKU: 210-91-03GB01
Availability:
2345 in stock
- MPN: 210-91-03GB01
- Manufacturer: Pinrex
- Pack Size: 1000 Bag
$0.20 Exc GST
| Qty | Price Per Unit | Total Price |
| 1+ | $0.22 Incl GST $0.20 Excl GST | $0.22 Incl GST $0.20 Excl GST |
| 25 | $0.11 Incl GST $0.10 Excl GST | $2.75 Incl GST $2.50 Excl GST |
| 100 | $0.05 Incl GST $0.045 Excl GST | $4.95 Incl GST $4.50 Excl GST |
| 1000 | $0.04 Incl GST $0.035 Excl GST | $38.50 Incl GST $35.00 Excl GST |
SKU : 210-91-03GB01
Categories : Connectors > Pinrex > Pinstrips 2.54mm
| Contacts: | Single Row 1×03 Pins |
| Pitch: | 2.54mm |
| Contact Type: | PCB Through-hole Straight |
| Dimensions: | Refer Data Sheet |
| Current Rating: | 3A |
| Insulation Resistance: | 5000MΩ min. @ 500VDC |
| Contact Resistance: | 20mΩ max. @ 100mA DC |
| Material: | High Temp Polyester / Brass |
| Operating Temp: | -40 ~ +105°C |
