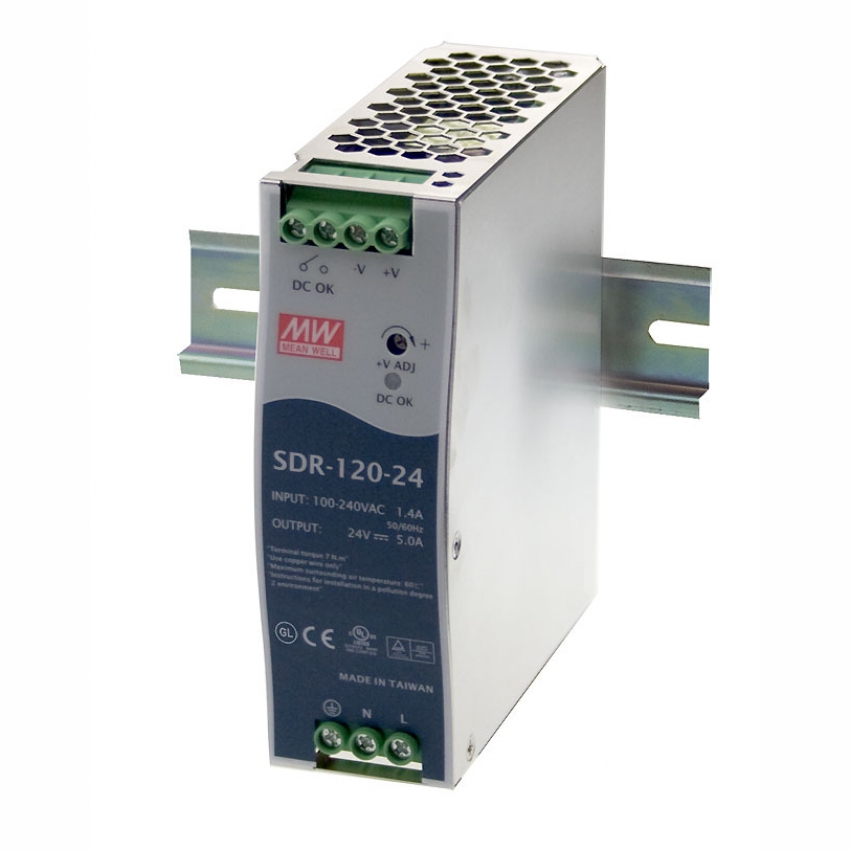

SDR-120-24 | MEAN WELL DIN RAIL 120W 24VDC 5.0A

SKU: SDR-120-24

Availability:

Available on backorder


Slim & High Efficiency

Available on backorder

Quantity Price Per Unit
1+ 102.90 Excl GST

The Mean Well SDR-120-24 is a slim line 120W 24VDC Din Rail power supply. The design of the SDR-120-24 body has been kept as small as possible to allow for maximum space inside of the cabinets it is being installed into. With working efficiency up to 91%, the entire SDR series can operate at the ambient temperature of -25⁰ and 70⁰ under air convection.

SKU: SDR-120-24 Categories: , , Tags: , , ,
Output Type: Constant Voltage
Output Channels: Single
Output Voltage: 24 VDC
Output Current: 5.0 A
Output Wattage: 120 W
Input Voltage: 88 ∼ 264 VAC
Connection In: Screw DIN Terminals
Connection Out: Screw DIN Terminals
Case Type: Metal Enclosed
Dimensions: 40 x 126 x 114 mm
IP Rating: None
Warranty: 3 Years

Additional Features
DC OK Indicator: Yes
Voltage Adjustment: 24 ∼ 28V
Current Adjustment: None
Cooling Fan: No

SDR-120 Data Sheet
