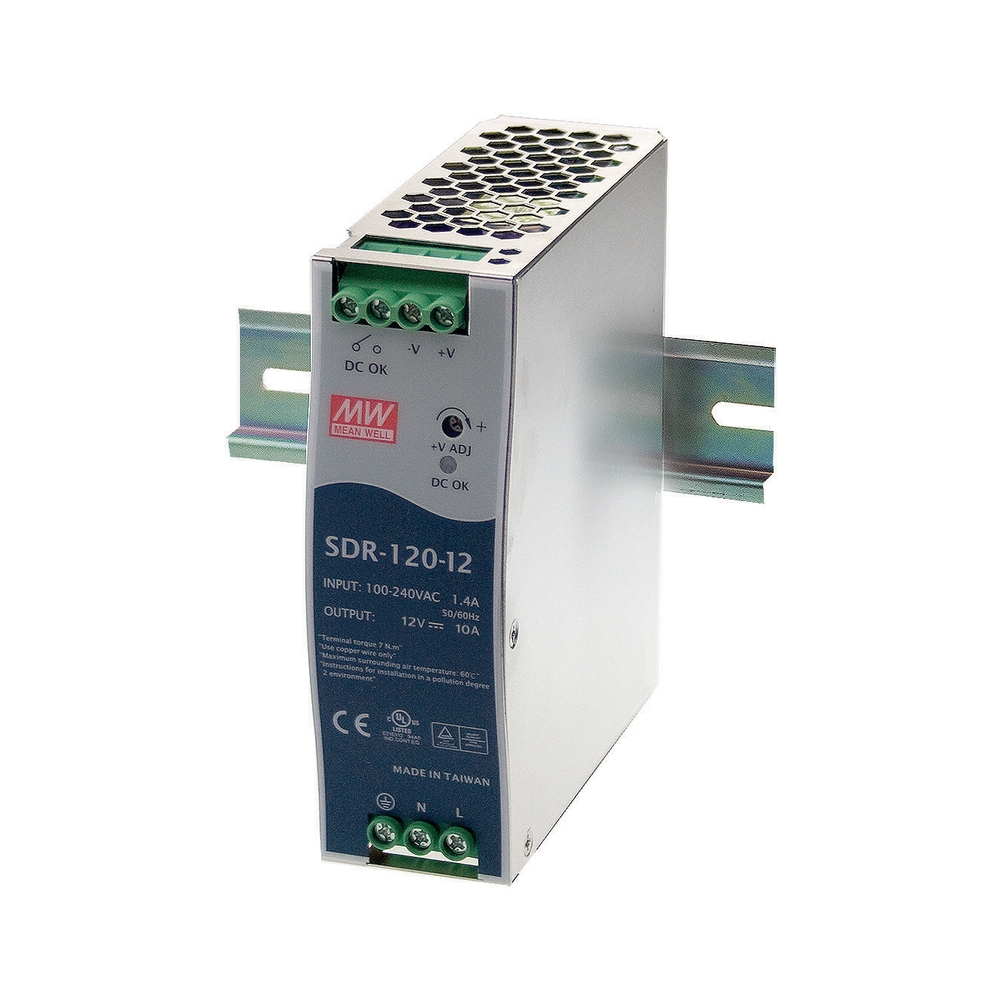

SDR-120-12 | MEAN WELL DIN RAIL 120W 12VDC 10.0A

SKU: SDR-120-12

Availability:

1 in stock (can be backordered)


Slim & High Efficiency

1 in stock (can be backordered)

Quantity Price Per Unit
1+ 116.90 Excl GST

The Mean Well SDR-120-12 is a slim line 120W 12VDC Din Rail power supply. The design of the SDR-120-12 body has been kept as small as possible to allow for maximum space inside of the cabinets it is being installed into. With working efficiency up to 91%, the entire SDR series can operate at the ambient temperature of -25⁰ and 70⁰ under air convection.

SKU: SDR-120-12 Categories: , , Tags: , , ,
Output Type: Constant Voltage
Output Channels: Single
Output Voltage: 12 VDC
Output Current: 10.0 A
Output Wattage: 120 W
Input Voltage: 88 ∼ 264 VAC
Connection In: Screw DIN Terminals
Connection Out: Screw DIN Terminals
Case Type: Metal Enclosed
Dimensions: 40 x 126 x 114 mm
IP Rating: None
Warranty: 3 Years

Additional Features
DC OK Indicator: Yes
Voltage Adjustment: 24 ∼ 28V
Current Adjustment: None
Cooling Fan: No

SDR-120 Data Sheet
