- Charger for lead-acid batteries (flooded, Gel and AGM) and Li-ion batteries (lithium iron and lithium manganese)
- 3 stage charging
- AC 115/230VAC selected by switch
- Built-in passive PFC function compliance to EN61000-3-2 Class A (option)
- Protection: Short circuit / Reverse polarity / Over voltage / Over temperature
- 2 colour LED loading indicator Low cost, High reliability
- FAN on/off control (Depends on charging current)
- 3 years warranty
Battery Chargers, Mean Well, Power Supplies

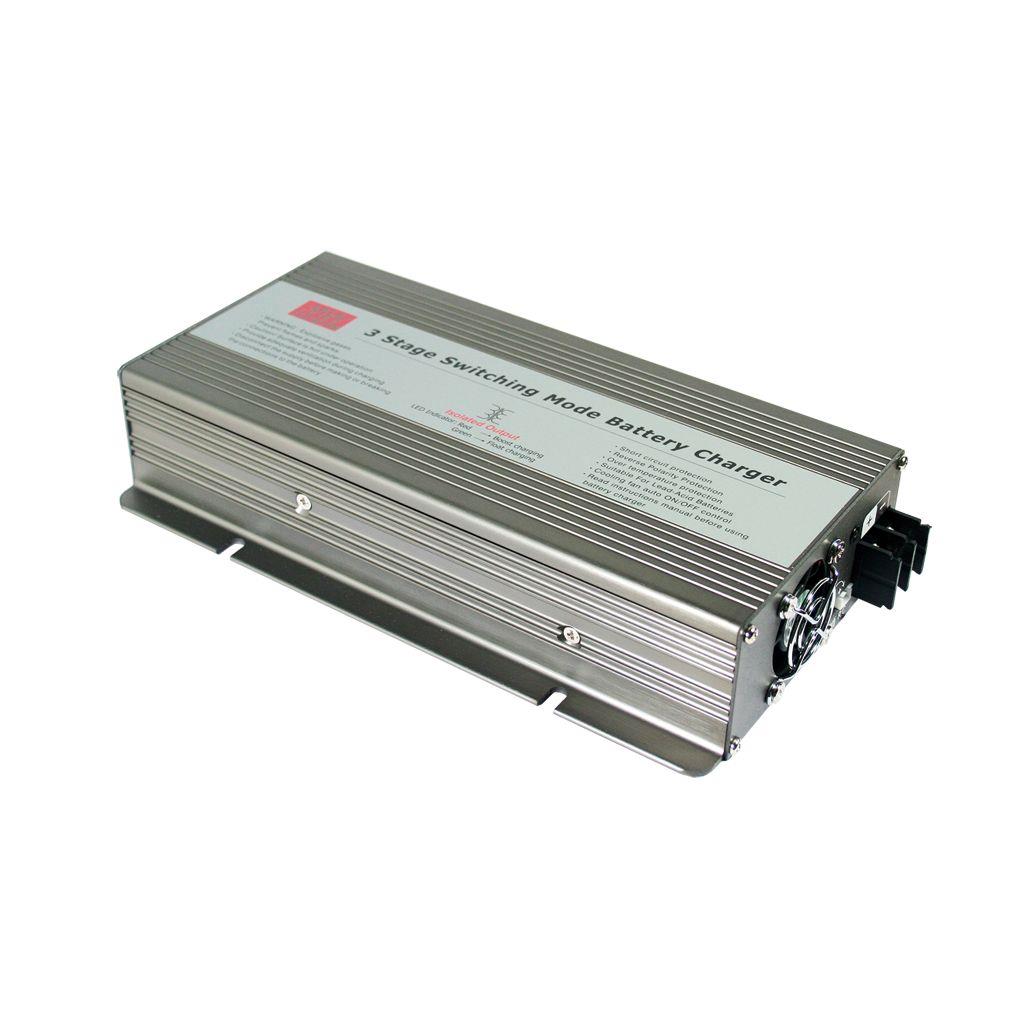

PB-360P-12CDM | BATTERY CHARGER SLA 12VDC 24A 360W
SKU: PB-360P-12CDM
Availability:
0 in stock
Developed specifically for the Australian Caravan Market, this battery charger allows charging while the battery is under load.
DISCONTINUED – SUGGESTED ALTERNATIVE IS NPB-450-12
0 in stock
Not available on line - Call us for further details
Technical data | |
Item number | PB-360P-12CDM |
Description | AC-DC Single Output battery charger with PFC; Input with 3 pin IEC320-C14 socket; Output 28.8VDC at 12.5A with terminal block; 3 stage charging with cooling fan |
Format | Box Type – Enclosed |
Output Power (W) | 360 |
Output Voltage (V) | 28.8 |
Output Current (A) | 12.5 |
Input Voltage (V) | 180-264V
90-132V |
IP Rating | No IP |
Format | Box Type – Enclosed |
Width (mm) | 135 |
Height (mm) | 48.5 |
Depth (mm) | 253 |
