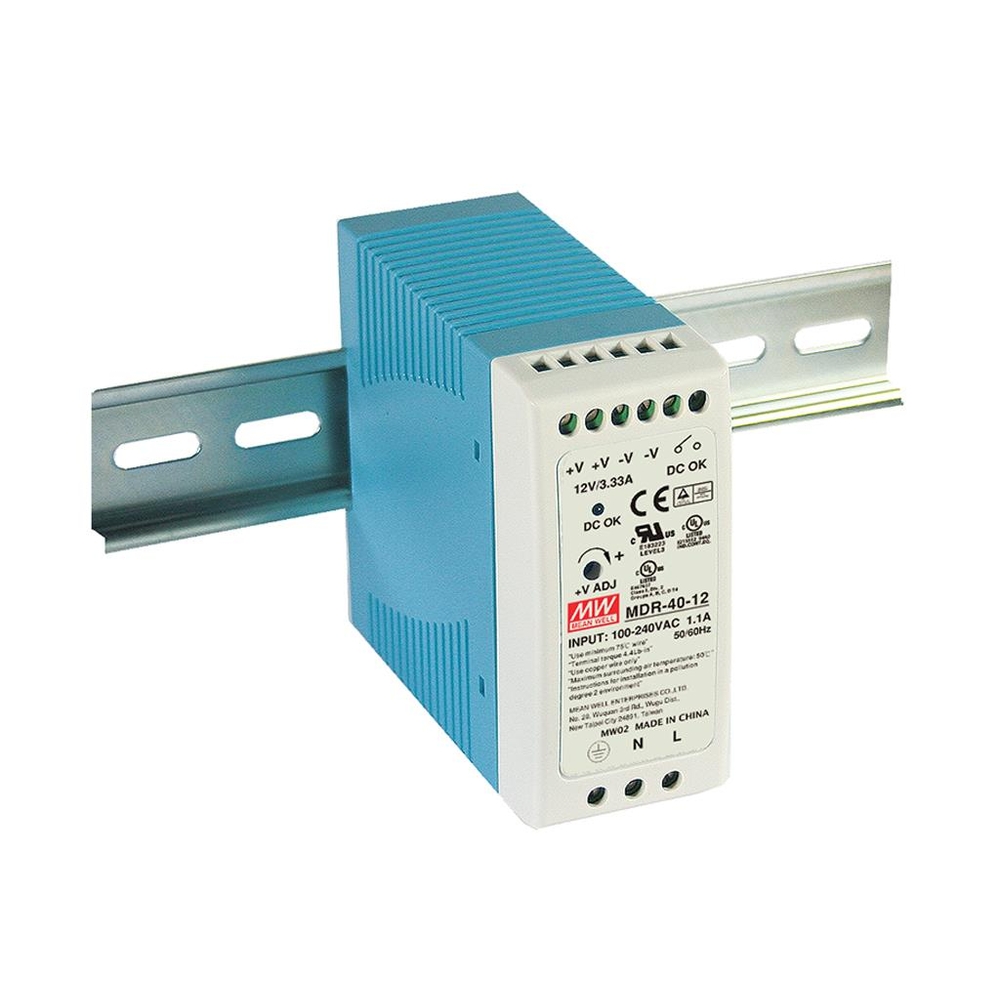

MDR-40-12 | MEAN WELL DIN RAIL 40W 12VDC 3.33A

SKU: MDR-40-12

Availability:

19 in stock (can be backordered)


Ultra Slim

19 in stock (can be backordered)

Quantity Price Per Unit
1+ 34.90 Excl GST

The Mean Well MDR-40-12 is a slim line 40W 12VDC Din Rail power supply. The design of the MDR-40-12 body has been kept as small as possible to allow for maximum space inside of the cabinets it is being installed into. The entire MDR series adopts a full AC input range from 85VAC to 264VAC.

Output Type: Constant Voltage
Output Channels: Single
Output Voltage: 12 VDC
Output Current: 3.33 A
Output Wattage: 40 W
Input Voltage: 85 ∼ 264 VAC
Connection In: Screw DIN Terminals
Connection Out: Screw DIN Terminals
Case Type: Plastic Enclosed
Dimensions: 40 x 90 x 100 mm
IP Rating: None
Warranty: 3 Years

Additional Features
DC OK Indicator: Yes
Voltage Adjustment: 0 ∼ +20%
Current Adjustment: None
Cooling Fan: No

MDR-40-12 Data Sheet
