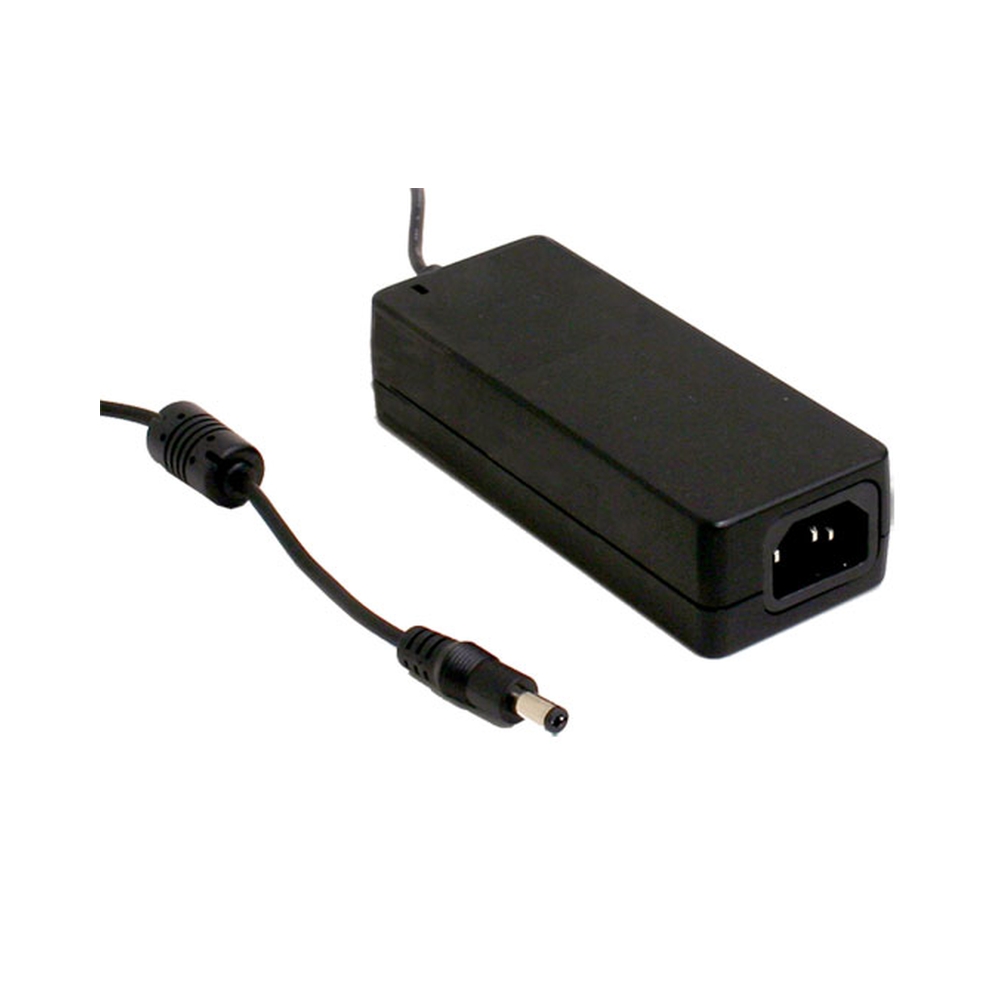

GST40A24-P1J | MEAN WELL SWITCH MODE DESKTOP POWER SUPPLY 40W 24VDC 1.67A
SKU: GST40A24-P1J
16 in stock (can be backordered)
- Short Circuit, Overload and Over-Voltage Protection
- Fully Enclosed Plastic Case (94V0)
- 3 Year Warranty
Contact us or Register for Trade, Wholesale/ Reseller Pricing.
16 in stock (can be backordered)
Quantity | Price Per Unit |
---|---|
1+ | $33.55 Incl GST $30.50 Excl GST |
10+ | $32.45 Incl GST $29.50 Excl GST |
The GST40A series is a highly reliable, 40W desktop style single-output power supply. This product is a class I power unit, equipped with a standard IEC320-C14 AC inlet and adopting the input range from 90VAC to 264VAC. Different models are available with output voltages ranging between 5VDC and 48VDC that can satisfy the demands for various types of consumer electronic devices. With an efficiency up to 92% and an extremely low no-load power consumption below 75mW, the GST40A is compliant with Australia and New Zealand MEPS regulations. The entire series utilizes the 94V-0 flame retardant plastic case.
Specifications | |
Output Type: | Constant Voltage |
Output Voltage: | 24 VDC |
Output Current: | 1.67 A |
Output Wattage: | 40 W |
Input Voltage: | 90 – 264 VAC |
Connection In: | Requires IEC Lead |
Connection Out: | 1m Lead / 2.1mm DC Plug |
Case Type: | Plastic Enclosed |
Dimensions: | 125 x 50 x 31.5 mm |
IP Rating: | N/A |
Warranty: | 3 Years |
 | |
Additional Features | |
Dimmable: | No |
Voltage Adjustment: | None |
Current Adjustment: | None |
Cooling Fan: | No |
