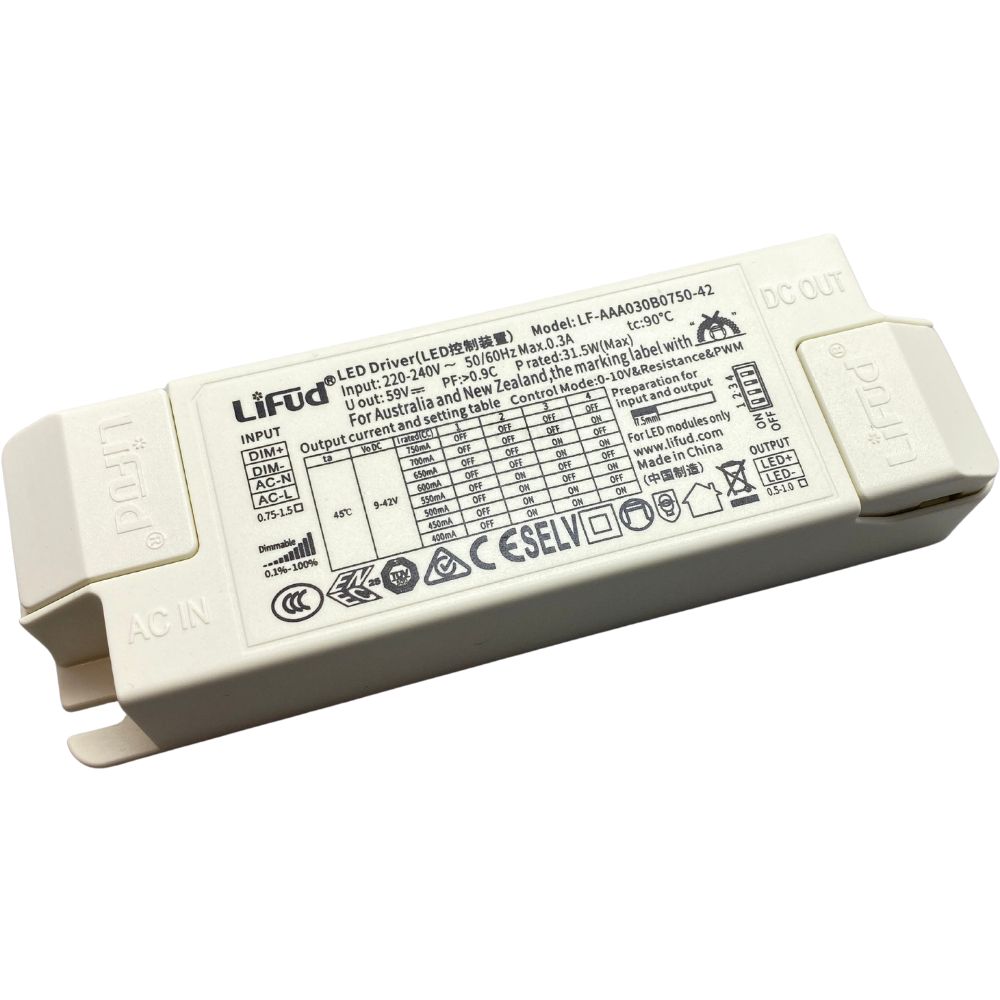

LF-AAA030B0750-42 is an 30W constant current flicker free LED driver. It has 0-10V/PWM/Rx dimming functions. The input voltage range is 220-240Vac. The output current can be adjusted via the DIP switch from 400mA to 750mA (400mA, 450mA, 500mA, 550mA, 600mA, 650mA, 700mA, 750mA), in steps of 50mA.
Features
- IP20
- Suitable for Class II light fixtures
- Constant current output and the output current can be adjusted via the DIP switch
- Built-in active PFC function
- Standby power consumption <0.5W
- 0-10V/PWM/Rx dimming
- 5-year warranty (Please refer to the warranty conditions)
Applications
- Indoor office lighting
- Decorative lighting
- Commercial lighting
- Residential lighting
LF-AAA030B0750-42 Data Sheet
| Output Type: |
Constant Current |
| Output Voltage: |
9-42VDC |
| Output Current: |
400mA, 450mA, 500mA, 550mA, 600mA, 650mA, 700mA, 750mA |
| Output Wattage: |
30W |
| Input Voltage: |
220–240 VAC
180-280 VDC |
| Input Current: |
0.3A Max |
| Connection In: |
Push Terminals |
| Connection Out: |
Push Terminals |
| Case Type: |
Plastic Enclosed |
| Flicker Percentage: |
≤1% |
| Efficiency: |
≥84% |
| Power Factor: |
≥0.9 |
| Working Temp: |
– 20°C ~ +45°C |
| Dimensions: |
142 x 46 x 28 mm |
| IP Rating: |
IP20 |
| Warranty: |
5 Years (Tc ≤80.5°C) |
| Protections: |
Open Circuit: <59V |
|
Short Circuit: Constant Current Mode |
| Additional Features |
| Dimmable: |
Yes: 0-10V/ PWM/ Rx |
| Voltage Adjustment: |
No |
| Current Adjustment: |
Yes |
| Cooling Fan: |
No |
