CC Triac Dimmable Driver 350-700mA 8W 2-12VDC
| | | | |

CC Triac Dimmable Driver 350-700mA 8W 2-12VDC

SKU: LF-AAT008-0700-12

Availability:

108 in stock (can be backordered)

Output Current Selectable: 350-700mA

Contact us or Register for Trade, Wholesale/ Reseller Pricing.

$23.25 Exc GST

Qty Price Per Unit Total Price
1+ $25.58 Incl GST $23.25 Excl GST $25.58 Incl GST $23.25 Excl GST

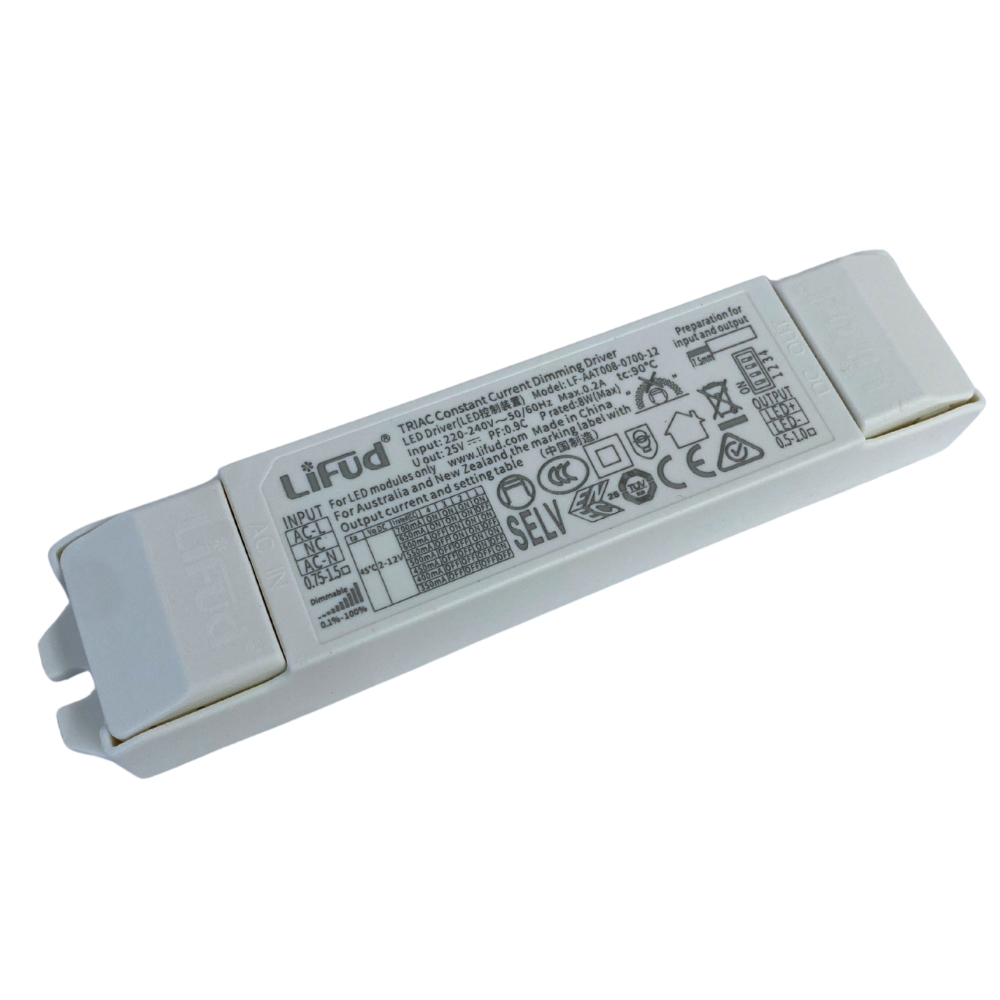

LF-AAT008-0700-12 is an 8W constant current flicker free LED driver. It has TRIAC (Phase) dimming functions. The input voltage range is 220-240Vac. The output current can be adjusted via the DIP switch from 350mA to 700mA (350mA, 400mA, 450mA, 500mA, 550mA, 600mA, 650mA, 700mA), in steps of 50mA.

Features

  • IP20
  • Suitable for Class II light fixtures
  • Constant current output and the output current can be adjusted via the DIP switch
  • Built-in active PFC function
  • Standby power consumption <0.5W
  • Triac/ Phase dimming
  • 5-year warranty (Please refer to the warranty conditions)

Applications

  • Indoor office lighting
  • Decorative lighting
  • Commercial lighting
  • Residential lighting

LF-AAT008-0700-12 Datasheet

SKU : LF-AAT008-0700-12

Categories : Constant Current LED Drivers > LED Drivers > Lifud > Multi Output LED Drivers > Power Supplies > Triac Dimmable LED Driver

Output Type: Constant Current
Output Voltage: 2-12VDC
Output Current: 350mA, 400mA, 450mA, 500mA, 550mA, 600mA, 650mA, 700mA
Output Wattage: 8W
Input Voltage: 220–240 VAC

176-280 VDC
Input Current: 0.2A Max
Connection In: Push Terminals
Connection Out: Push Terminals
Case Type: Plastic Enclosed
Flicker Percentage: ≤0.9%
Efficiency: ≥68%
Power Factor: ≥0.90
Working Temp: – 20°C ~ +45°C
Dimensions: 142 x 30 x 21 mm
IP Rating: IP20
Warranty:  5 Years (Tc ≤79°C)
Protections: Open Circuit: <25V
Short Circuit: Hiccup mode (auto-recovery)
Additional Features
Dimmable: Yes: Triac/ Phase

LF-AAT008-0700-12 Datasheet
