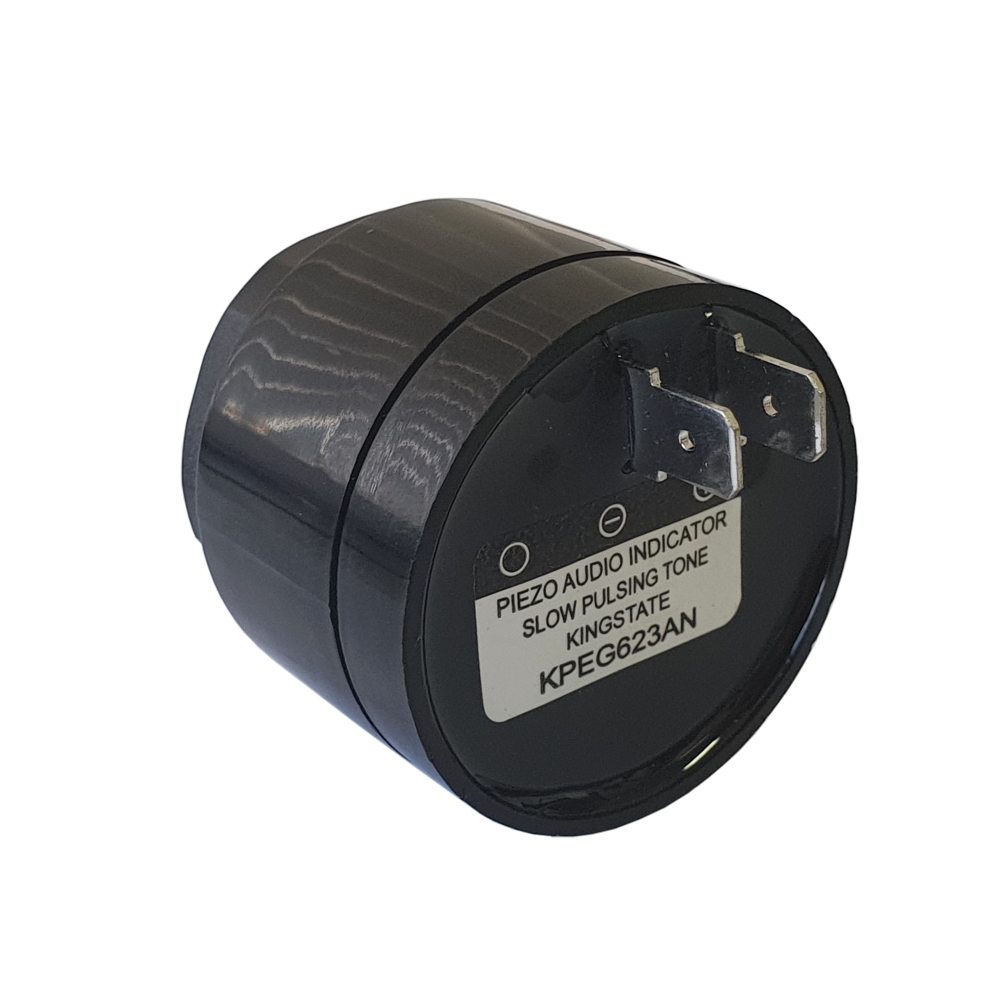

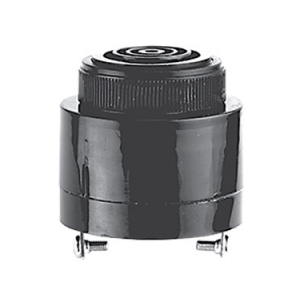

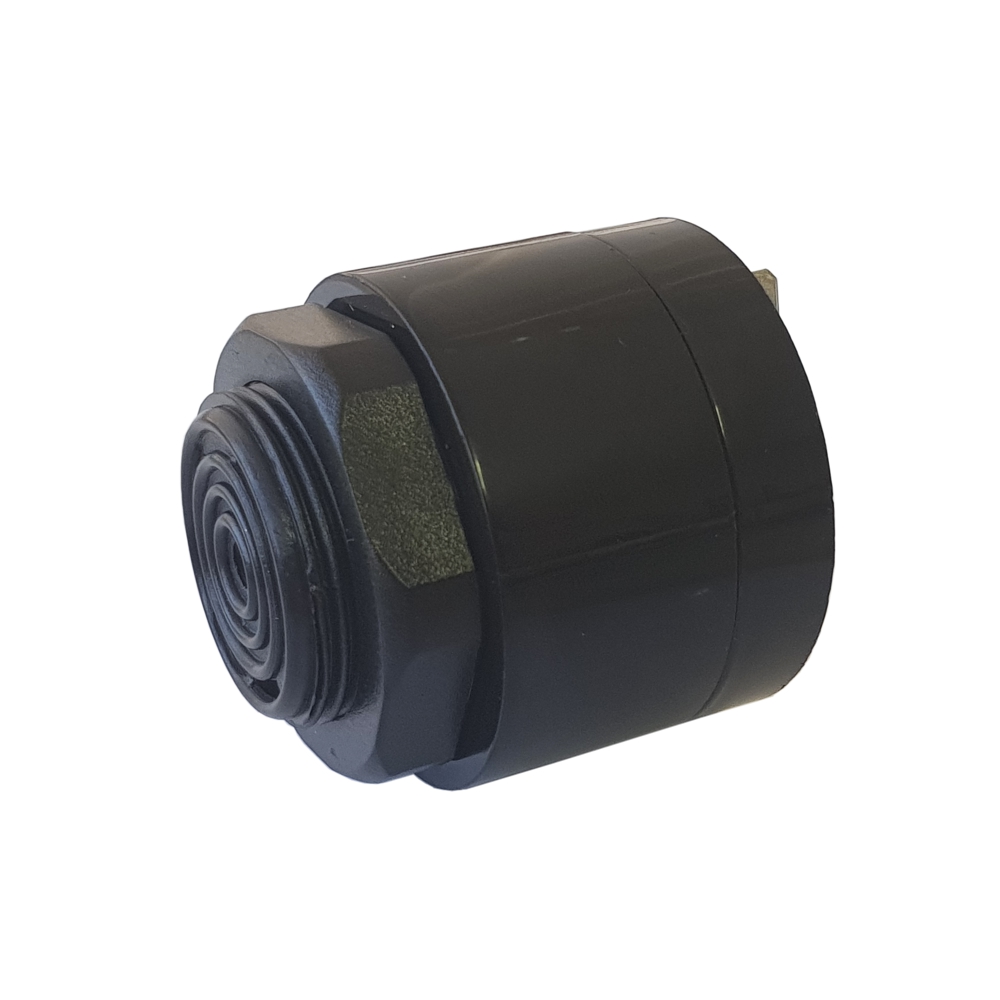

Piezo Buzzer Panel Mount 60-250V AC/DC 82dB
This high-voltage piezo buzzer is designed for panel mount applications and operates on a wide voltage range of 60V to 250V AC/DC, making it ideal for industrial and commercial environments. It delivers a clear intermittent tone at 82dB with a frequency of 2800Hz and features a pulse rate of 1.2Hz for effective audible alerting. With low power consumption at just 16mA and a durable design rated for temperatures from -30°C to +85°C, this buzzer is built for reliable operation in demanding conditions.
Features:
-
Wide operating voltage: 60–250V AC/DC
-
Loud 82dB sound pressure level
-
Intermittent tone at 1.2Hz for enhanced alerting
-
Rated frequency: 2800Hz
-
Low power consumption: 16mA max
-
Broad operating temperature range: -30°C to +85°C
-
Rugged panel mount design (42.5mm x 42.5mm)
-
Suitable for industrial control panels, machinery alerts, and warning systems
