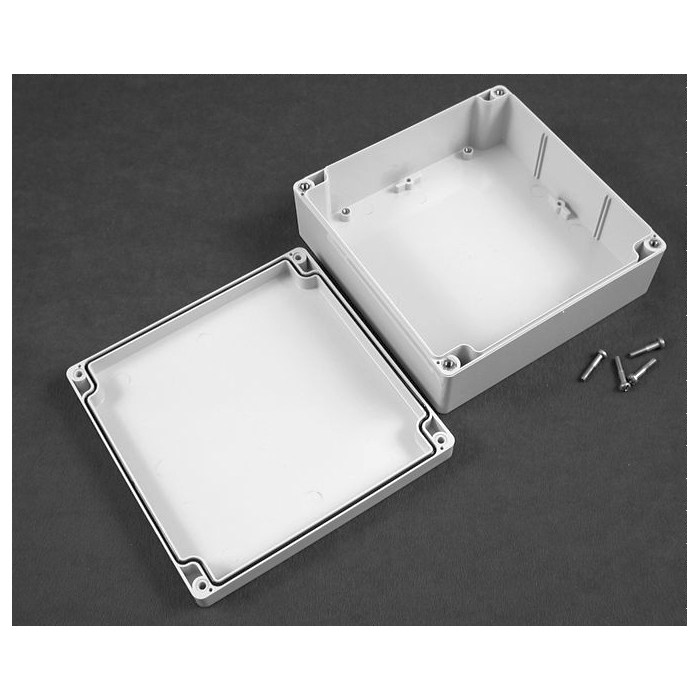

1554RGY | ABS PLASTIC ENCLOSURE 160x160x60mm

• Ideally suited for mounting printed circuit boards or DIN rail mounted components.
• Polycarbonate versions are UV stabilized for outdoor use, UL94-5VA rating.
• UL 508A listed (File # E65324).
• Enclosure color is a light gray (RAL 7035).
• Gasketed lid with two piece “tongue & groove” construction provides protection against access of oil, dust and water.
• Gasket is one piece made from high temperature, U.L. listed silicone.
• Designed to meet IP 66 & NEMA 4, 4X, 6, 6P, 12 & 13 ratings.
• Lid is secured with included M4 stainless steel machine screws which are threaded into integral stainless steel bushings for repetitive assembly & disassembly. All hardware is stainless steel to avoid corrosion caused by dissimilar metals.
• Lid screws are self captivating (lid holes are threaded with the first installation of lid screws).
• Internal DIN rail mounting tabs.
• Threaded (M3) integral brass inserts and/or standoffs (#6 self tapping screws) for P.C. board or inner panel mounting.
• Vertical P.C. card guides (for 1.5 mm thick P.C. boards).
