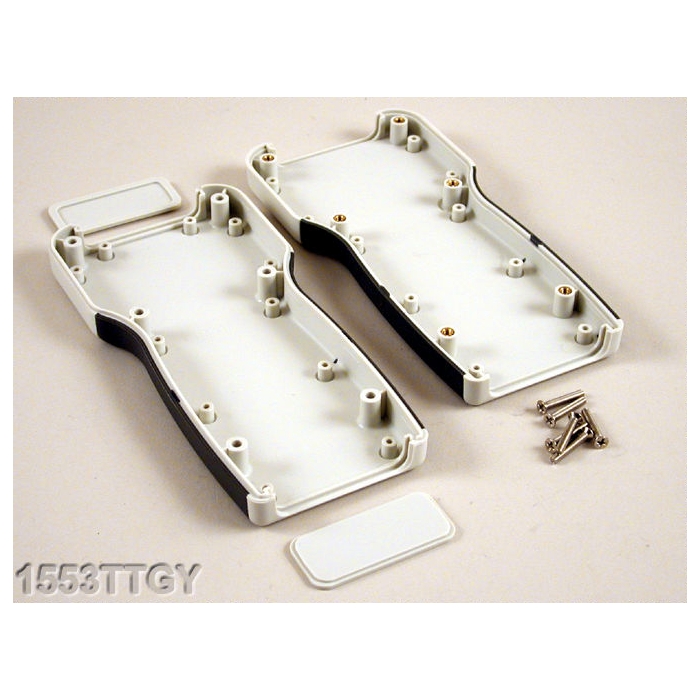

1553TTGY | HAND HELD CASE GREY WITH BATTERY DOOR 165x80x28mm

• Ergonomically designed for a comfortable fit into the user’s hand.
• Perfect for instrument or mobile data enclosures requiring a keypad and display.
• Both the display and keyboard areas are recessed for membrane devices.
• Molded from flame retardant ABS plastic, material carries a UL flammability rating of 94V-0.
• Handheld section of enclosure includes a dark grey overmold, soft plastic grip.
• Enclosure is assembled with M3-0.5 x 18 mm Philips machine screws, threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly are required.
• Integral brass bushings are factory inserted into top half of the enclosure.
• Lap joint construction provides protection against access of dust and splashing water. Designed to meet IP54.
• P.C. board standoffs are molded into the case top & bottom halves.
• Bottom half of enclosure includes molded in label recess on back: 56x42mm
