- Ergonomically designed for a comfortable fit into the user’s hand.
- Perfect for instrument or mobile data enclosures requiring a keypad and display.
- Both the display and keyboard areas are recessed for membrane devices.
- Molded from flame retardant ABS plastic, material carries a UL flammability rating of 94V-0.
- Handheld section of enclosure includes a dark grey overmold, soft plastic grip.
- Enclosure is assembled with M3-0.5 x 18 mm Philips machine screws, threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly are required.
- Integral brass bushings are factory inserted into top half of the enclosure.
- Lap joint construction provides protection against access of dust and splashing water. Designed to meet IP54.
- P.C. board standoffs are molded into the case top & bottom halves.
- Battery door & compartment, 4 battery clips (for 2- AA batteries) and one 9 volt (PP3) battery clip.
- Bottom half of enclosure includes molded in label recess on back: 44x33mm
1553 Series - ABS Plastic Hand Held Enclosures, Boxes - Enclosures, Hammond Boxes and Enclosures

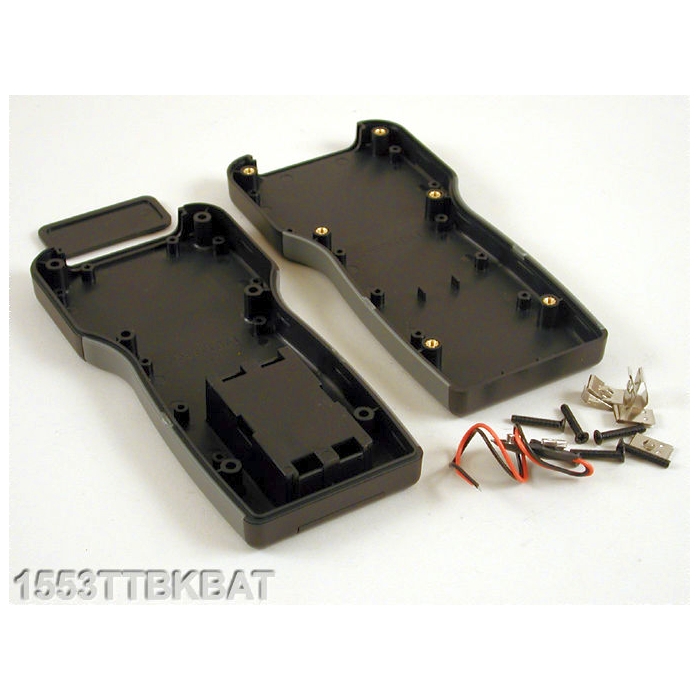

1553TTBKBAT | HAND HELD CASE BLACK WITH BATTERY DOOR 165x80x28mm
SKU: 1553TTBKBAT
Availability:
0 in stock
0 in stock
Not available on line - Call us for further details
