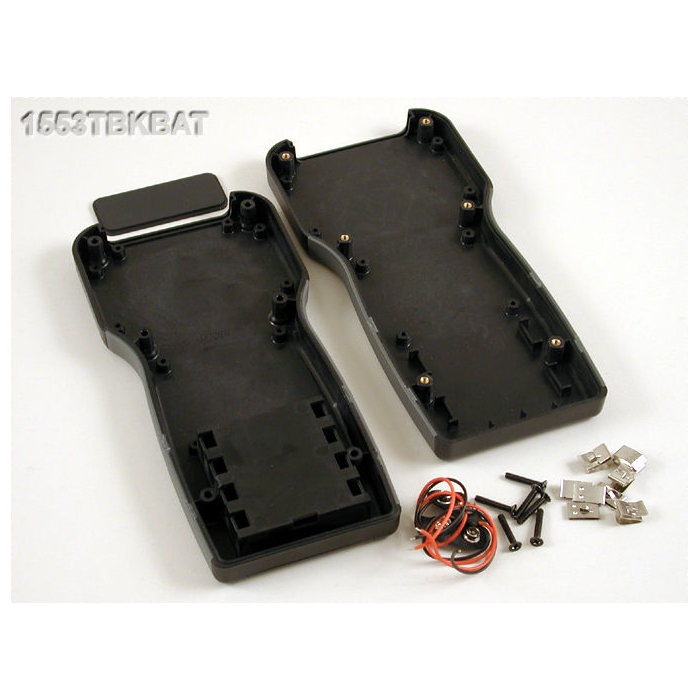

1553TBKBAT | HAND HELD CASE BLACK WITH BATTERY DOOR 210x100x32mm

SKU: 1553TBKBAT

Availability:

2 in stock


2 in stock

Not available on line - Call us for further details

  • Ergonomically designed for a comfortable fit into the user’s hand.
  • Perfect for instrument or mobile data enclosures requiring a keypad and display.
  • Both the display and keyboard areas are recessed for membrane devices.
  • Molded from flame retardant ABS plastic, material carries a UL flammability rating of 94V-0.
  • Handheld section of enclosure includes a dark grey overmold, soft plastic grip.
  • Enclosure is assembled with M3-0.5 x 18 mm Philips machine screws, threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly are required.
  • Integral brass bushings are factory inserted into top half of the enclosure.
  • Lap joint construction provides protection against access of dust and splashing water. Designed to meet IP54.
  • P.C. board standoffs are molded into the case top & bottom halves.
  • Battery door & compartment, 8 battery clips (for 4 – AA batteries) and two 9 volt (PP3) battery clips.
  • Bottom half of enclosure includes molded in label recess on back: 56x42mm
