SKU: MC712S
36 in stock (can be backordered)

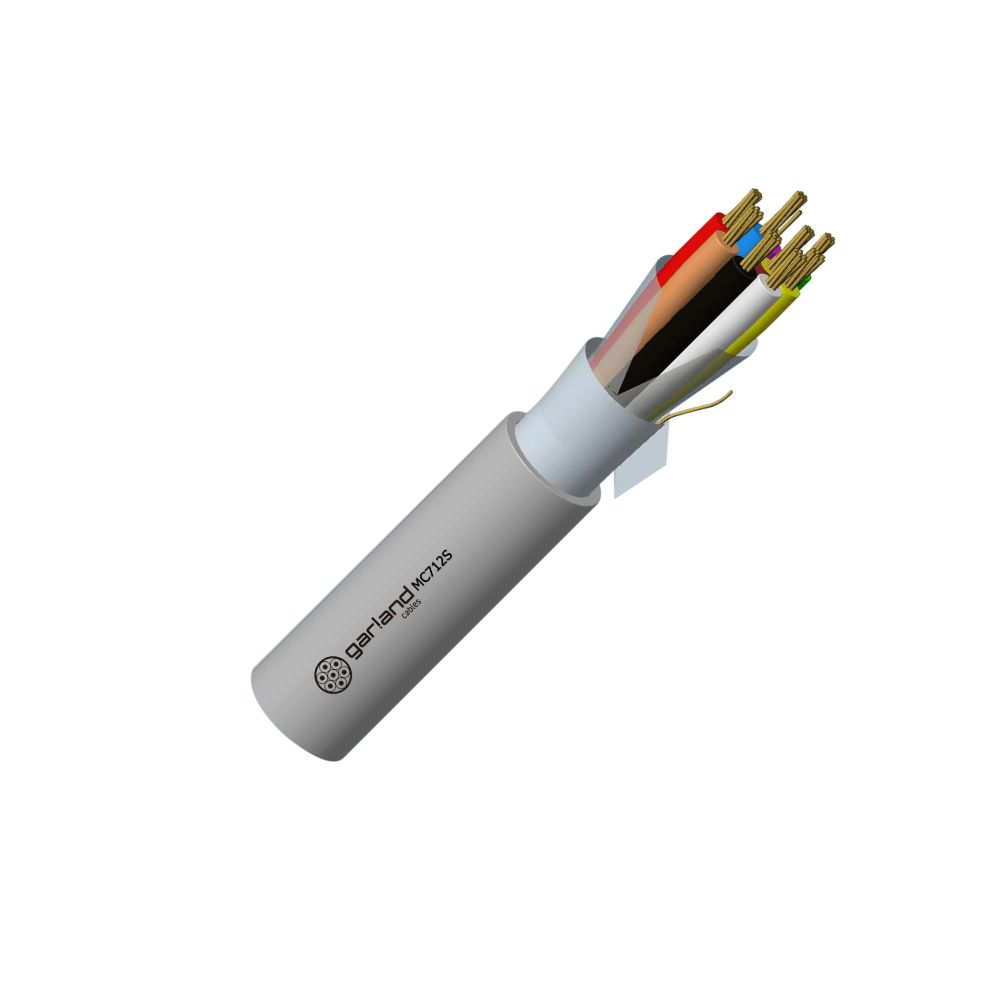

Data Cable 12 Core Screened 7×0.20mm Grey Sleeve
7/0.20 mm Tinned Copper Conductors, PVC Insulated, Aluminium Laminate Screened, PVC Jacketed, 12 Core Security, Alarm, Instrumentation and Serial Communications Cable.
Please note, this product is priced and sold per the meter.
SKU : MC712S
Categories : Cable and Wire > Garland Cables > Multicore Cable
| General | |
| Pack Size | 100m |
| Applicable Standards | AS/ACIF S008, EIA-RS232, UL 758 |
| Suitable Applications | For the interconnection of control equipment and Instruments. |
| ROHS Compliant | Yes |
| A-Tick (Yes/No) | yes |
| No. Cores | 12 |
| Conductor Characteristics | |
| AWG | 24 |
| Stranding (mm) | 7/0.2 |
| Area (mm2) | 0.22 |
| Diameter (mm) | 0.6 |
| Material | TC |
| Insulation | |
| Material | PVC |
| Nominal Thickness (mm) | 0.28 |
| Nominal OD (mm) | 1.2 |
| Drain Wire | |
| AWG | 24 |
| Stranding | 7 |
| Area (mm2) | 0.22 |
| Diameter (mm) | 0.2 |
| Material | TC |
| Screen | |
| Material | Al. Polyester Tape |
| Coverage (%) | 1 |
| Outer Sheath | |
| Material | PVC |
| Colour | GREY |
| Nominal Thickness (mm) | 0.8 |
| Nominal OD (mm) | 6.9 |
| Physical Characteristics | |
| Insulation – Elongation at BBA | >100% |
| Outer Sheath – Elongation at BBA | >100% |
| Tensile Strength Before Aging | >12MPa |
| Electrical Properties | |
| Max. Conductor DC Resistance @ 20°C | 95.3Ω/km |
| Min. Insulation Resistance @ 20°C | 50MΩ.km |
| Voltage Test: Conductor to core | 1.5 kV ac/1min |
| Voltage Test: Core to sheath | 3.0 kV ac/1min |
| Mechanical Properties | |
| Operating Temp Range | -15 to 70°C |
| Max. Recommended Pulling Tension | 184N |
| Min Bend Radius (Install) | 69mm |
| Approximate Mass(kgs/100m) | 7.2kg/100m |
