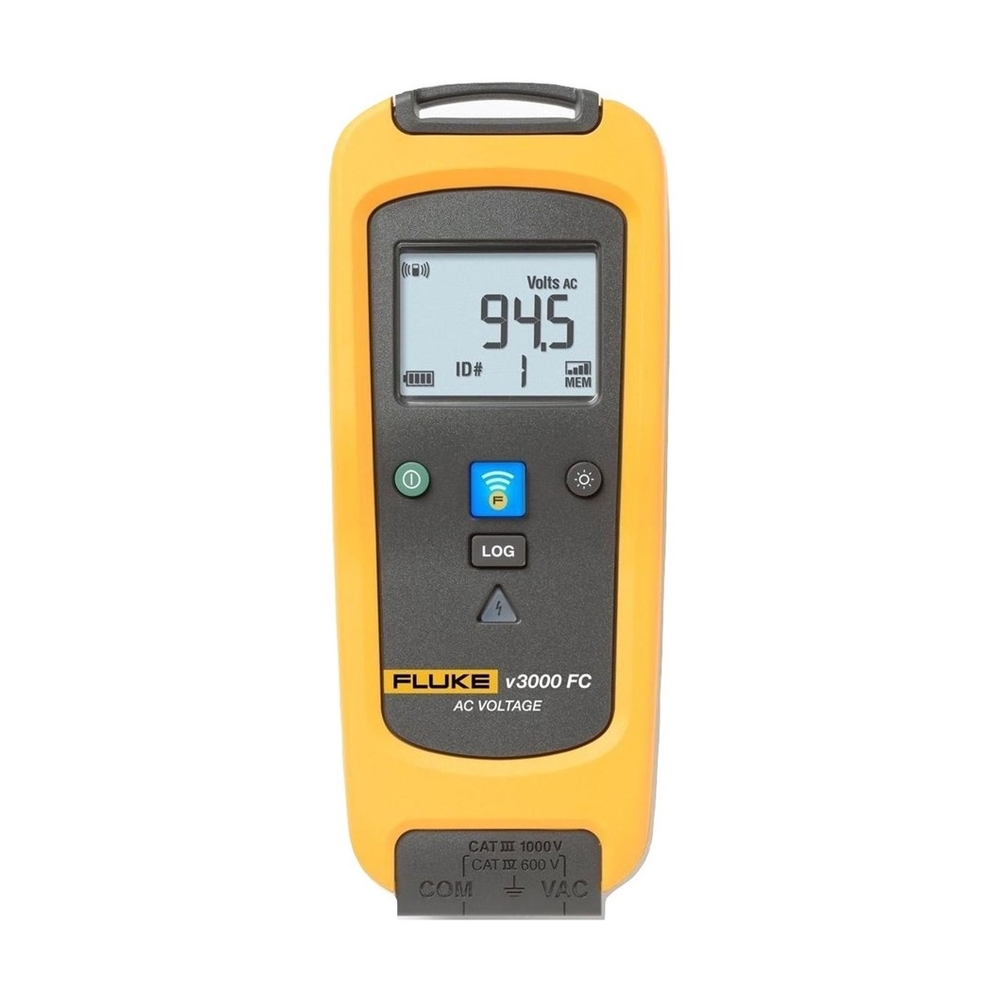

The Fluke v3000 FC Wireless AC Voltage Module is fully functional AC voltage meter that wirelessly relays AC voltage measurements to other Fluke Connect® enabled master units, listed below:
- Fluke 3000 FC DMM
- Fluke Ti200/300/400 Infrared Camera
- PC via optional pc3000 FC Adapter Fluke Connect Mobile app
With the Fluke v3000 FC Wireless AC Voltage Module you can:
- Measure up to 1000 V True-RMS AC
- Use as a standalone meter or as part of the system
- Use the logging function for recording and saving up to 65,000 readings
| Specifications |
| Range¹ / Resolution |
6.000 V / 0.001 V
60.00 V / 0.01 V
600.0 V / 0.1 V
1000 V / 1 V |
| Accuracy234 |
45 Hz to 500 Hz |
1.0% + 3 |
| 500 Hz to 1 kHz |
2.0% + 3 |
Accuracy is specified as ± ([% of reading] + [number of least significant digits]). All ranges are autoranging.
Accuracy is specified from 5% to 100% of the range obtained by autoranging, from 18°C to 28°C.
1. All AC voltage ranges are specified from 1% of range to 100% of range.
2. Crest factor of ≤ 3 at full scale up to 500 V, decreasing linearly to crest factor < 1.5 at 1000 V.
3. For non-sinusoidial waveforms, add ± (2% of reading + 2% full scale) typical, for crest factor up to 3.
4. Do not exceed 107 V-Hz. |
| General Specifications |
| LCD w/backlight |
3½ digits, 6000 counts, updates 4/sec |
| Battery type |
2 AA, NEDA 15 A, IEC LR6 |
| Battery life |
400 Hours |
| Memory |
Record up to 65000 readings |
| RF communications |
2.4 GHZ ISM Band |
| RF communication range |
Open air, unobstructed |
Up to 20 m |
| Obstructed, sheetrock wall |
Up to 6.5 m |
| Obstructed, concrete wall or steel electrical enclosure |
Up to 3.5 m |
| Operating temperature |
-10°C to +50°C |
| Storage temperature |
-40°C to +60°C |
| Temperature coefficient |
0.1 X (specified accuracy)/°C (< 18°C or > 28°C) |
| Operating humidity |
90% at 35°C, 45% at 40°C, 45% at 50°C |
| Altitude |
Operating |
2,000 m |
| Storage |
12,000 m |
| EMC |
EN 61326–1:2006 |
| Safety compliance |
ANSI/ISA 61010–1 / (82.02.01) |
3rd edition |
| CAN / CSA–C22.2 No 61010–1–12 |
3rd edition |
| UL 61010–1 |
3rd edition |
| IEC/EN 61010–1 |
2010 |
| Safety rating |
CAT IV 600 V, CAT III 1000 V |
| Certifications |
CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE |
| Ingress Protection (IP) rating |
IP42 |
| Pollution Degree |
2 |
| Size (HxWxD) |
16.5 x 6.35 x 1.4 cm (6.5 x 2.5 x 1.4 in) |
| Weight |
.22 kg (8 oz) |
| Warranty |
Three years |
| Note: Not compatible with Fluke CNX test tools |
Fluke Connect Compatibility Chart
