SKU : MICS-28
Categories : Connectors > Excel Cell Electronics > IC Sockets
Tags : 0.6", 28-Way, IC Socket, Machine Pin
Connectors | Excel Cell Electronics | IC Sockets

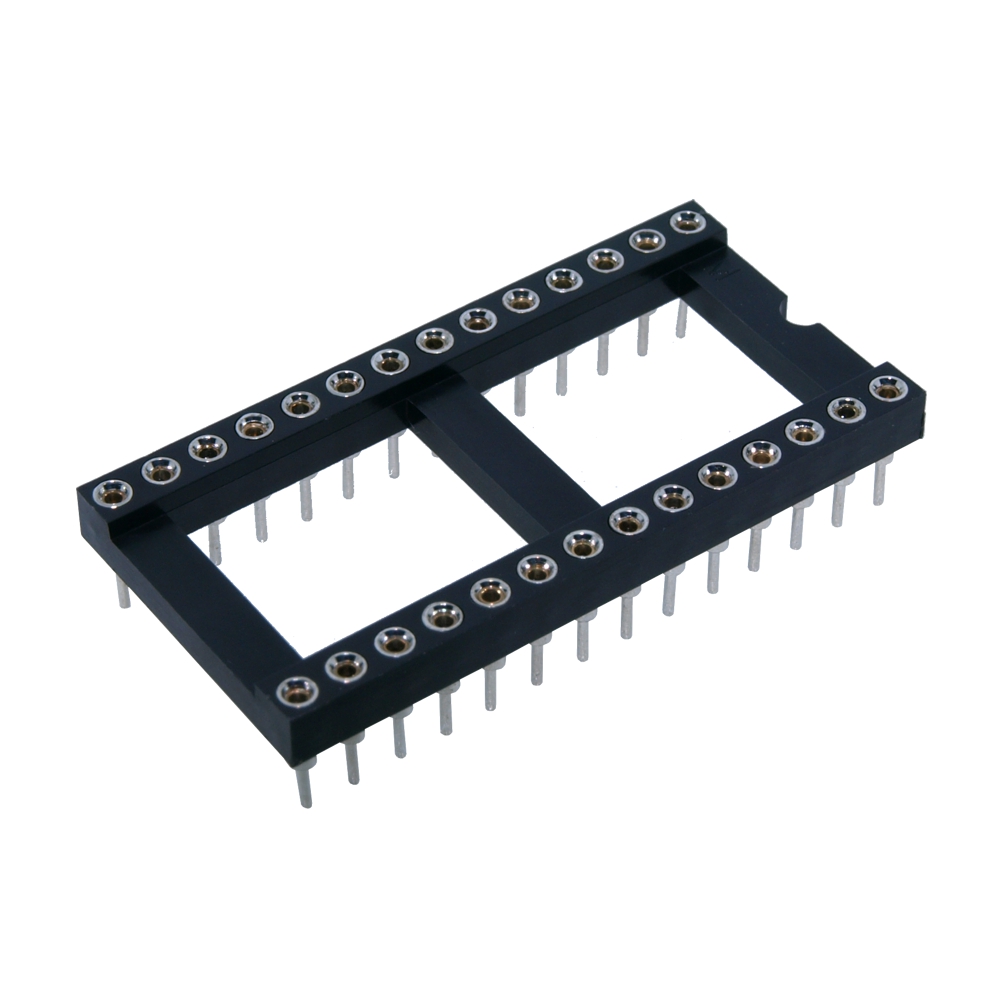

MICS-28 | IC SOCKET MACHINE PIN 0.6″ 28-WAY
SKU: MICS-28
Availability:
354 in stock
$0.80 Exc GST
| Qty | Price Per Unit | Total Price |
| 1+ | $0.88 Incl GST $0.80 Excl GST | $0.88 Incl GST $0.80 Excl GST |
| 25 | $0.70 Incl GST $0.64 Excl GST | $17.60 Incl GST $16.00 Excl GST |
| 100 | $0.53 Incl GST $0.48 Excl GST | $52.80 Incl GST $48.00 Excl GST |
| 1000 | $0.46 Incl GST $0.42 Excl GST | $462.00 Incl GST $420.00 Excl GST |
| Contacts: | 28 |
| Row Spacing: | 0.6” |
| Contact Type: | Machine Pin |
| Dimensions: | Refer Drawing |
| Current Rating: | 1A |
| Insulation Resistance: | 5000MΩ min. @ 500VDC |
| Contact Resistance: | 20mΩ max. @ 100mA DC |
| Material: | Polyester / Phosphor Bronze |
