SKU : MICS-20
Categories : Connectors > Excel Cell Electronics > IC Sockets
Tags : 0.3", 20-Way, IC Socket, Machine Pin
Connectors | Excel Cell Electronics | IC Sockets

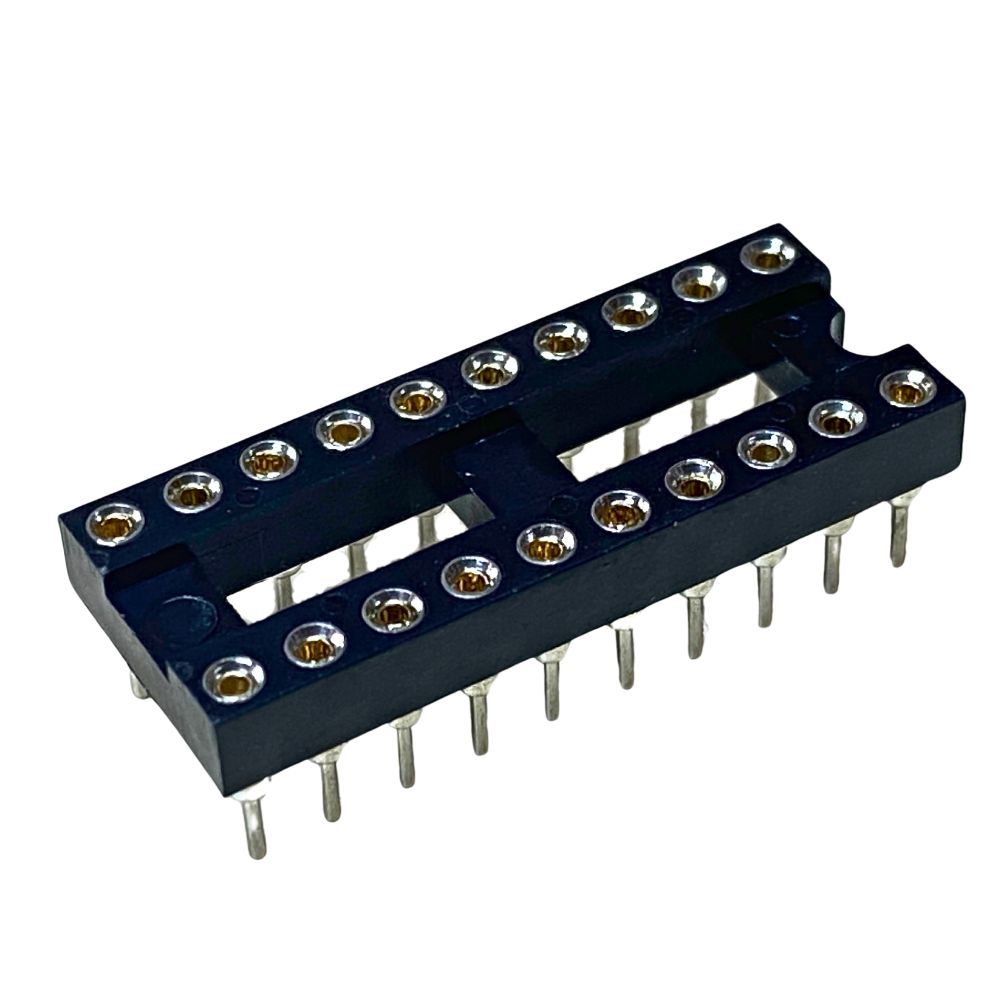

MICS-20 | IC SOCKET MACHINE PIN 0.3″ 20-WAY
SKU: MICS-20
Availability:
1734 in stock (can be backordered)
$0.70 Exc GST
| Qty | Price Per Unit | Total Price |
| 1+ | $0.77 Incl GST $0.70 Excl GST | $0.77 Incl GST $0.70 Excl GST |
| 25 | $0.62 Incl GST $0.56 Excl GST | $15.40 Incl GST $14.00 Excl GST |
| 100 | $0.51 Incl GST $0.46 Excl GST | $50.60 Incl GST $46.00 Excl GST |
| 1000 | $0.48 Incl GST $0.44 Excl GST | $484.00 Incl GST $440.00 Excl GST |
| Contacts: | 20 |
| Row Spacing: | 0.3” |
| Contact Type: | Machine Pin |
| Dimensions: | Refer Drawing |
| Current Rating: | 1A |
| Insulation Resistance: | 5000MΩ min. @ 500VDC |
| Contact Resistance: | 20mΩ max. @ 100mA DC |
| Material: | Polyester / Phosphor Bronze |
