SKU : MICS-08
Categories : Connectors > Excel Cell Electronics > IC Sockets
Tags : 0.3", 8 Way, IC Socket, Machine Pin
Connectors | Excel Cell Electronics | IC Sockets

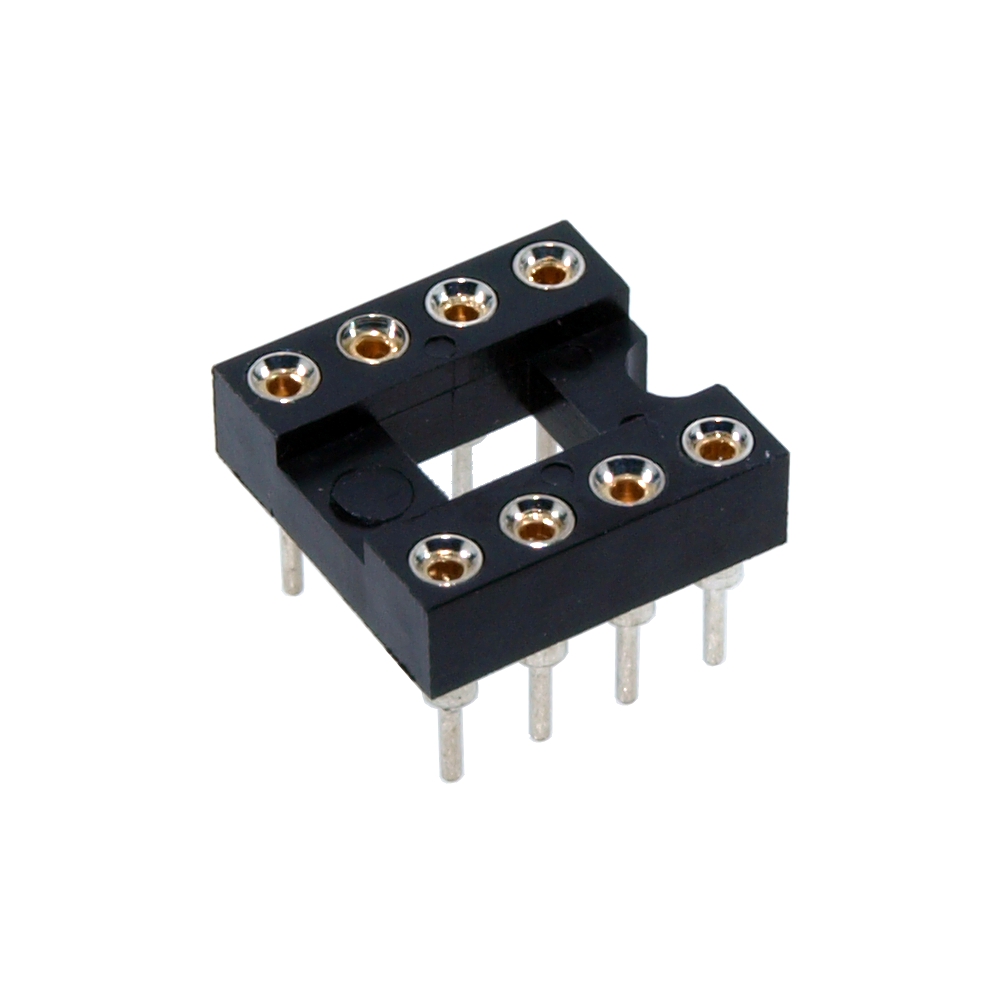

MICS-08 | IC SOCKET MACHINE PIN 0.3″ 8-WAY
SKU: MICS-08
Availability:
2780 in stock
- MPN: EMS230834
- Manufacturer: Excel Cell Electronics
- Pack Size: 60 Tube
$0.50 Exc GST
| Qty | Price Per Unit | Total Price |
| 1+ | $0.55 Incl GST $0.50 Excl GST | $0.55 Incl GST $0.50 Excl GST |
| 60 | $0.29 Incl GST $0.26 Excl GST | $17.16 Incl GST $15.60 Excl GST |
| 300 | $0.26 Incl GST $0.24 Excl GST | $79.20 Incl GST $72.00 Excl GST |
| Contacts: | 8 |
| Row Spacing: | 0.3” |
| Contact Type: | Machine Pin |
| Dimensions: | Refer Drawing |
| Current Rating: | 1A |
| Insulation Resistance: | 5000MΩ min. @ 500VDC |
| Contact Resistance: | 20mΩ max. @ 100mA DC |
| Material: | Polyester / Phosphor Bronze |
