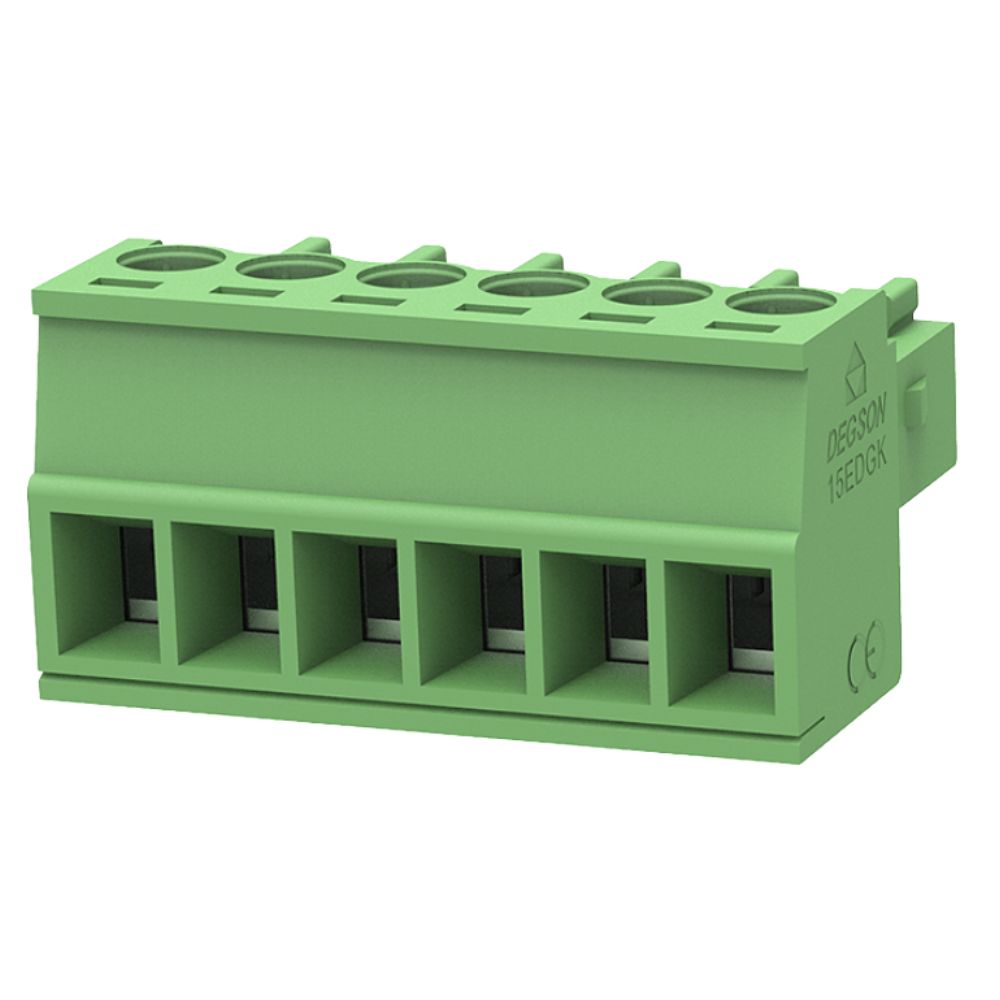

3.81mm Cable Header 6-Way
The 3.81mm 6-way cable header provides a secure, pluggable screw terminal solution for reliable wire-to-board connections in compact PCB layouts. With a 3.81mm pitch and horizontal wire entry, it accommodates solid or flexible wires (0.5–1.5mm² / 28–16AWG) and features M2 slotted screws for a strong mechanical bond.
Tested to IEC61984 and UL1059 standards, it offers a UL-rated voltage of 300V at 8A and IEC-rated voltage of 250V at 7A. The unit includes tin-plated copper alloy contacts, housed in a flame-retardant PA66 material (UL94V-0), ensuring excellent electrical and thermal performance across a wide temperature range.
Features:
-
6-way pluggable cable header with 3.81mm pitch
-
Screw terminal connection with 0° horizontal entry
-
Compatible with 0.5–1.5mm² solid/flexible wires, 28–16AWG
-
Strip length: 7mm, Torque: 0.2N·m
-
Rated 300V/8A (UL), 250V/7A (IEC), 2.5kV surge rating
-
M2 slotted screw and tin-plated copper alloy contact construction
-
Housing: PA66 UL94V-0, flame-retardant and durable
-
Operating temperature: -40°C to +105°C
-
REACH and RoHS compliant
-
Certified to IEC61984 / UL1059, single row, pluggable design
